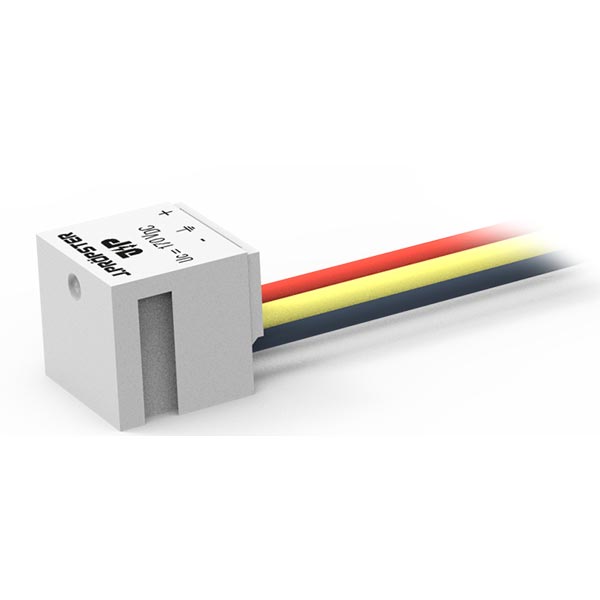

| Surge arrester (2-pole) for the protection of bus systems and for directly plugging into the slot of the bus coupling unit. | |
| Nominal operating voltage Un: 24 V ~ | |
| Rated load current IL: 7 A | |
| D1 Lightning impulse current Iimp : 1 kA (10/350 µs) | |
| C2 Nominal discharge current In : 5 kA (8/20 µs) | |
| C2 Voltage protection level at 5 kA Up Line/Line : < 1000 V | |
| C2 Voltage protection level at 5 kA Up Line/PE : < 600 V
