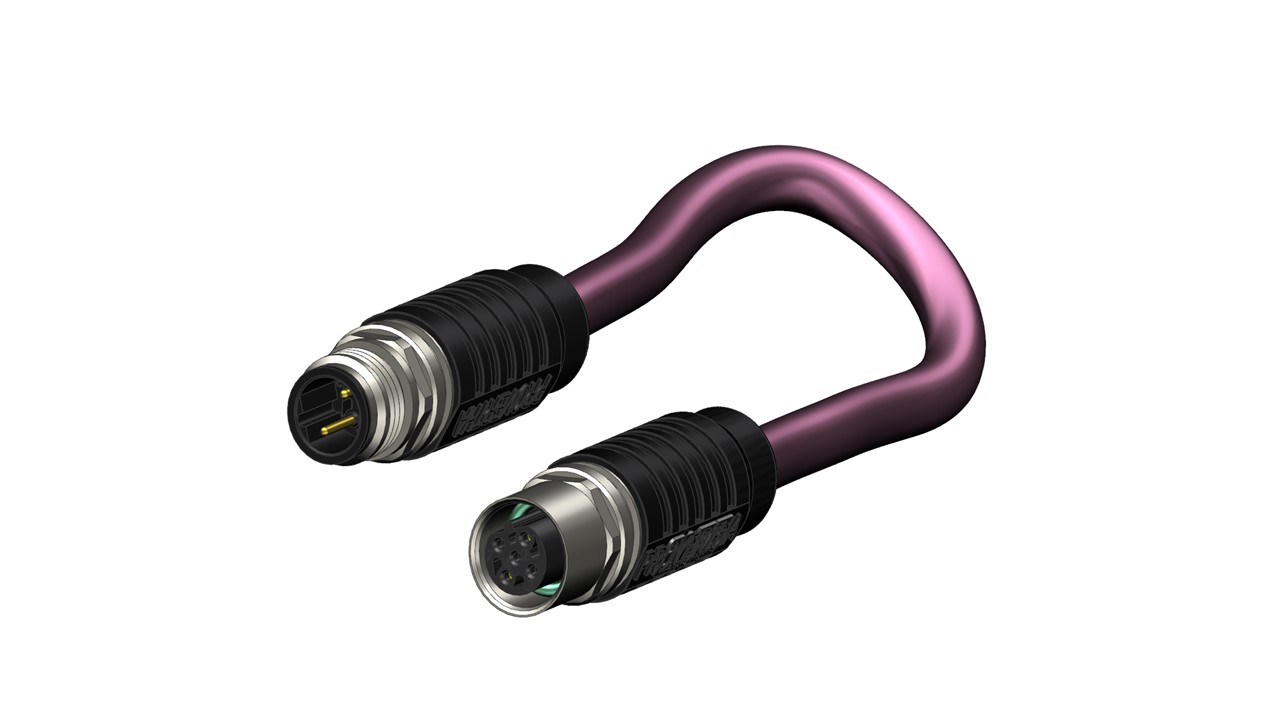

Especially for applications with powerful noise sources like welding guns or drag chain
applications, the IP 67 Profibus M12 cordsets with the Profibus dragchain cable and the
M12 connector with 360 ° EMI/RFI shielding system are the safe solution. This is achieved by a hf-proof M12 connector solution due to a complete full metal housing with integrated sealing components plus a 360° EMI/RFI crimp flange system for the cable shield termination. The hexagonal crimp of the crimp sleeve guarantees a torsion- and vibration-proof strain relief of the PROFIBUS cable assembly.

Technical features

• 360° EMI/RFI shielding
• Secure Profibus data transmission due to the 360° EMI/RFI Profibus M12 connector
• Safe signal and shield contact achieved by crimp termination and machined crimp contacts
  and crimp flange
• Safety for extreme harsh environments due to solid full metal housing
• Torsion- and vibration-proof cable strain relief achieved by hexagonal crimp
• Highly flexible PROFIBUS UL drag chain cable
• Protection degree: IP 67 (only screw-locked)
• 100% tested M12 PROFIBUS patch cords
• Versions: male – male, female – female, male – female
• Cable lengths: 0.3 m/0.5 m/0.75 m/1 m/1.5 m/2 m/3 m/5 m/10 m,
  other lengths upon request
