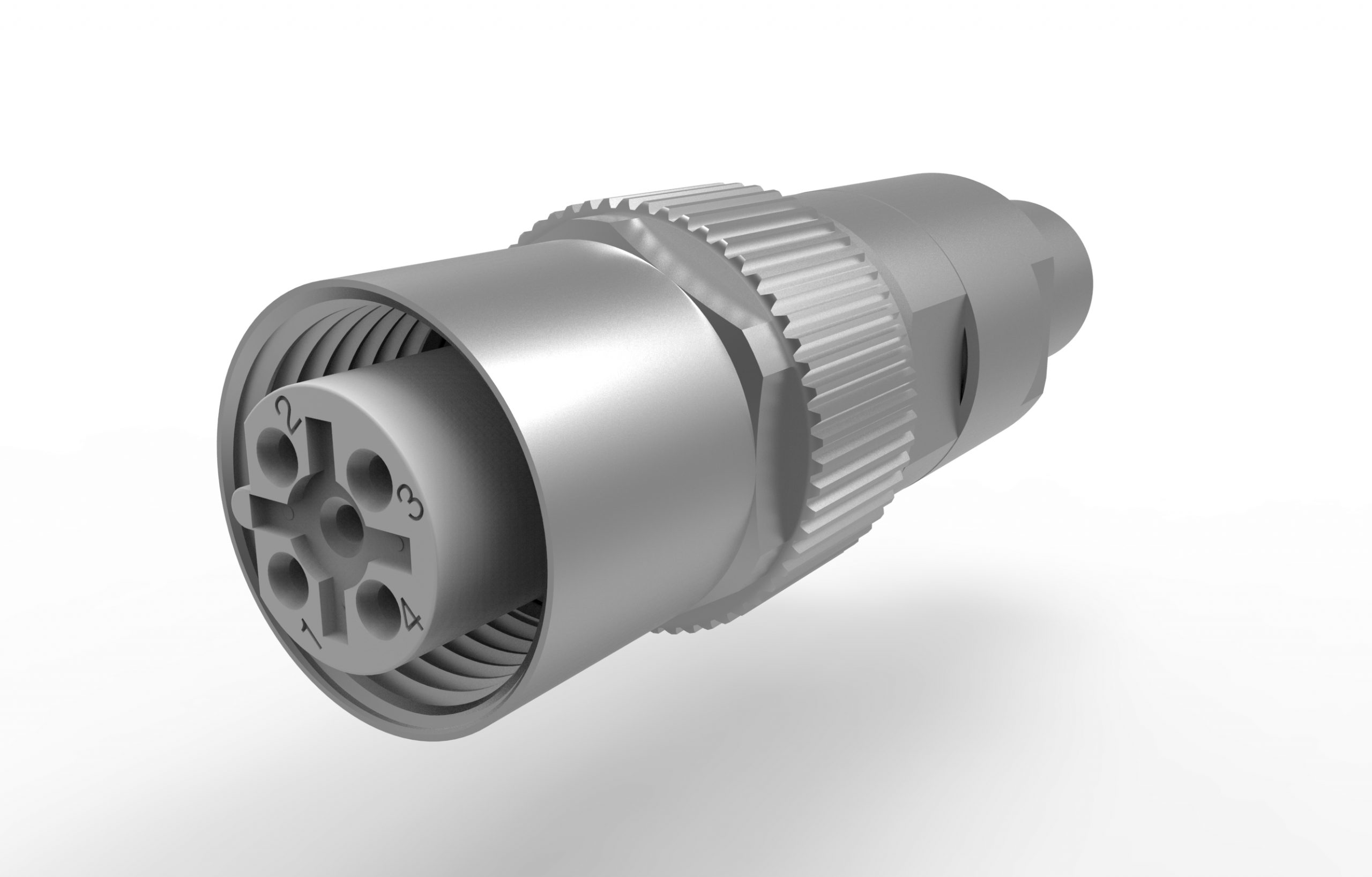

The Profibus M12 Crimp Cable Connector with B-coding and protection degree IP 67 fulfills the fail-safe field attachable Profibus connection and achieves a secure contact of the Profibus signal wires due to turned crimp contacts and the safe cable shield contact due to the 360° EMI/RFI crimp flange system with a vibration-resistant cable strain relief at the same time.
Technical features
| Steckverbinder/Connector | M12 |
| Codierung/Coding | B |
| Pinbelegung/Pin assignment | 2 und 4/2 and 4 |
| Kontaktzahl/Number of contacts | 2 |
| Bemessungsstrom/Current rating | 4 A |
| Betriebsspannung/Operation voltage | 32 V DC |
| Anschlussart Einzelader/termination single wire | Crimp snap-in |
| Aderquerschnitt/wire size | 0,34 mm2 (AWG 22) |
| Kabel-Zugentlastung Schirmübergabe/ | Crimpflansch/Crimphülse |
| Cable strain relief and shield connection | Crimp flange/crimp sleeve |
| Kabeldurchmesser/Cable diameter 8 ± 0,2 mm | |
| (andere Durchmesser auf Anfrage/other diameters upon request) | |
| IP Schutzart/IP protection | IP 67 (nur schraubverriegelt/only screw-locked) |
| Temperaturbereich/Temperature range | -20° C bis/to +85° C |
| Mechanische Lebensdauer/Mechanical lifetime | 200 Steckzyklen/mating cycles |
| (andere Steckzyklen auf Anfrage/other mating cycles upon request) | |
| Anzugsmoment/Torque | |
| Kabel-Verschraubung/Cable gland | 1,5-2 Nm (max. 3 Nm) |
| M12-Schraubverriegelung/M12 screw locking | 0,8-1Nm (max. 2 Nm) |
| Schlüsselweite/Wrench size | |
| Kabel-Verschraubung und Gehäuse/Cable gland and housing | SW 12 |
| M12-Schraubverriegelung/M12 screw locking | SW 13 |
| Außenabmessungen/Outer dimensions in mm | 53,2 x ø16 |
