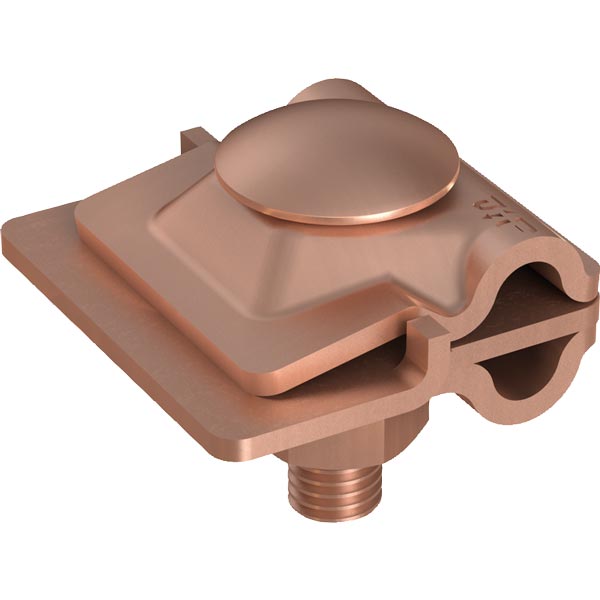

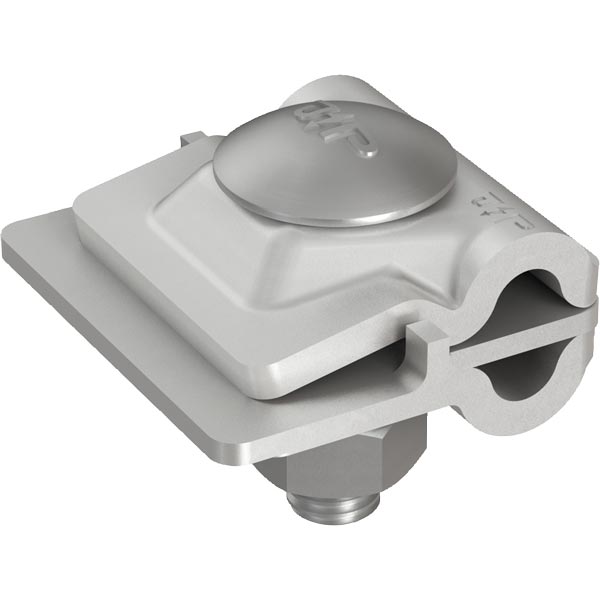

| Multi-Plus terminal- and connection-clamp according to EN 62561-1 with intermediate plate for the universal use as T-, cross-, parallel-clamp, joint-connector and metal sheet terminal clamp. | |
| Clamping range: up to 8 mm | |
| Contact surface: at least 10 cm² | |
| Screw: Carriage bolt M10 with nut | |
| The original Multi-clamp was invented by J. Pröpster in 1981 and since than been established a million times worldwide. | |
| It is the most varied lightning protection component and the centerpiece of the multifunctional system of J. Pröpster. | |
| Benefits: | |
| • Only one clamp for all types of wire connections | |
| • Max. contact due to consistent clamping | |
| • Extremely shortened installation time - only one screw M10 | |
| • Optimal handling at planning, acquisition and storage
For more detailed information, you can review the page in the link below. |
Aluminium 4 mm
Copper
Stainless steel V2A
Steel, hot galvanized
Coppered
Stainless steel V2A
Steel, hot galvanized
ø 8 mm
ø 8-10 mm
