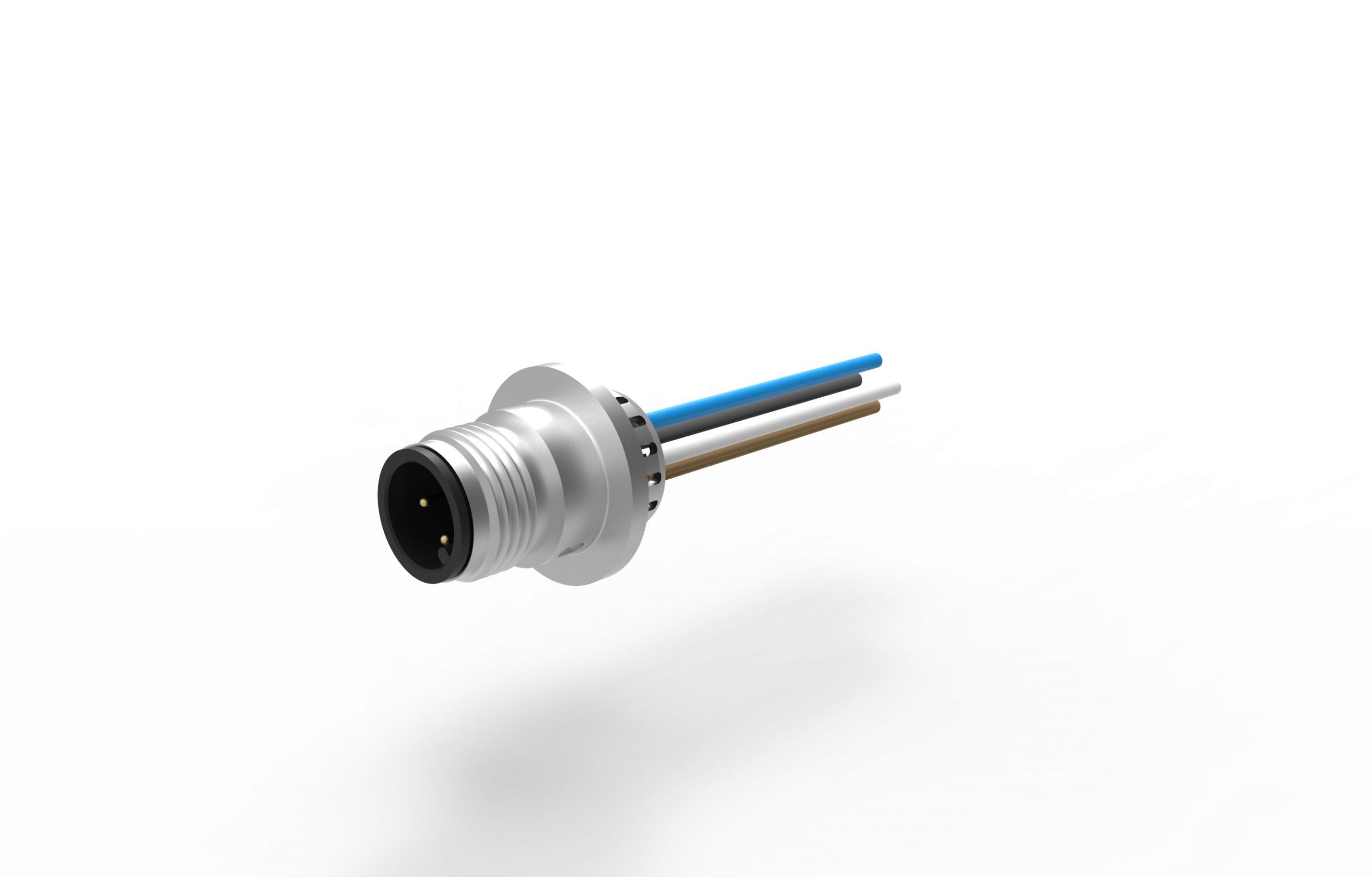

M12 PI-Flange Connector Male
The extremely robust M12 Press-In Flange Connectors are suitable as interface of sensor or actor devices in the area of industrial automation. The connector is mounted to the device through a patented flexible press-in zone. This zone allows higher production tolerances for the mounting hole of the customer housing. The connector withstands most adverse operating conditions due to the high pull-out forces and the crimped wire connections. Females with D-coding are ideal to establish Industrial-Ethernet Networks. The connectors are protected against manipulation (without wrench flat). The coding key direction (important for 90° cables) can be aligned without additional effort before starting the press-in process.
Technical features
– Compact dimensions, small outer diameter
– Housing with compliant press-in zone
– Male M12 A-code
– Effective shielding by metallic press connection
– M12 Locking thread
– crimped stranded wires
– manipulation proof
Technische Daten / Technical data |
|
|
Steckverbinder / Connector |
M12 gemäß / acc. to IEC 61076-2-101 |
|
Typ-Kodierung-Polzahl / Gender-Coding-No of pins |
Stift/Male-A-4 – Buchse/Female-D-4 |
|
Strombelastbarkeit/ Current rating |
4 A |
|
Bemessungsspannung / Nominal voltage |
60 V – 250V |
|
Durchgangswiderstand / Contact resistance |
≤ 10 mΩ |
|
Isolationswiderstand / Insulation resistance |
≥ 100 MΩ |
|
Überspannungskategorie/ Overvoltage category |
III |
|
Verschmutzungsgrad / Pollution degree |
3 |
|
Übertragungsgeschwindigkeit / Data transmission rate |
100 Mbit (D-kodiert/D-code) |
|
Schutzart / IP protection |
IP 67 (im verriegelten Zustand / in locked condition) |
|
Temperaturbereich / Temperature range |
–25° C bis/to +85° C |
|
Mechanische Lebensdauer / Mechanical lifetime |
≥ 250 Steckzyklen / mating cycles |
|
Verriegelung / Locking |
M12x1 Gewinde |
|
Drehmoment / torque |
max. 0,8 Nm (Kabelschraube / cable screw) |
|
|
|
|
Materialien / Materials |
|
|
Gehäuse / Housing |
Cu-Legierung vernickelt / Cu alloy Ni plated |
|
Isolierkörper + Kontaktträger / |
Thermoplast I2/F2 acc. to NFF-16-101/102 and HL3 acc. to R22/R23 EN 45545-2 |
|
Kontaktmaterial / Contact material |
Cu-Legierung / Cu alloy |
|
Kontaktoberfläche /Contact plating |
Ni/Au |
|
Dichtungen / Sealings |
Elastomer |
