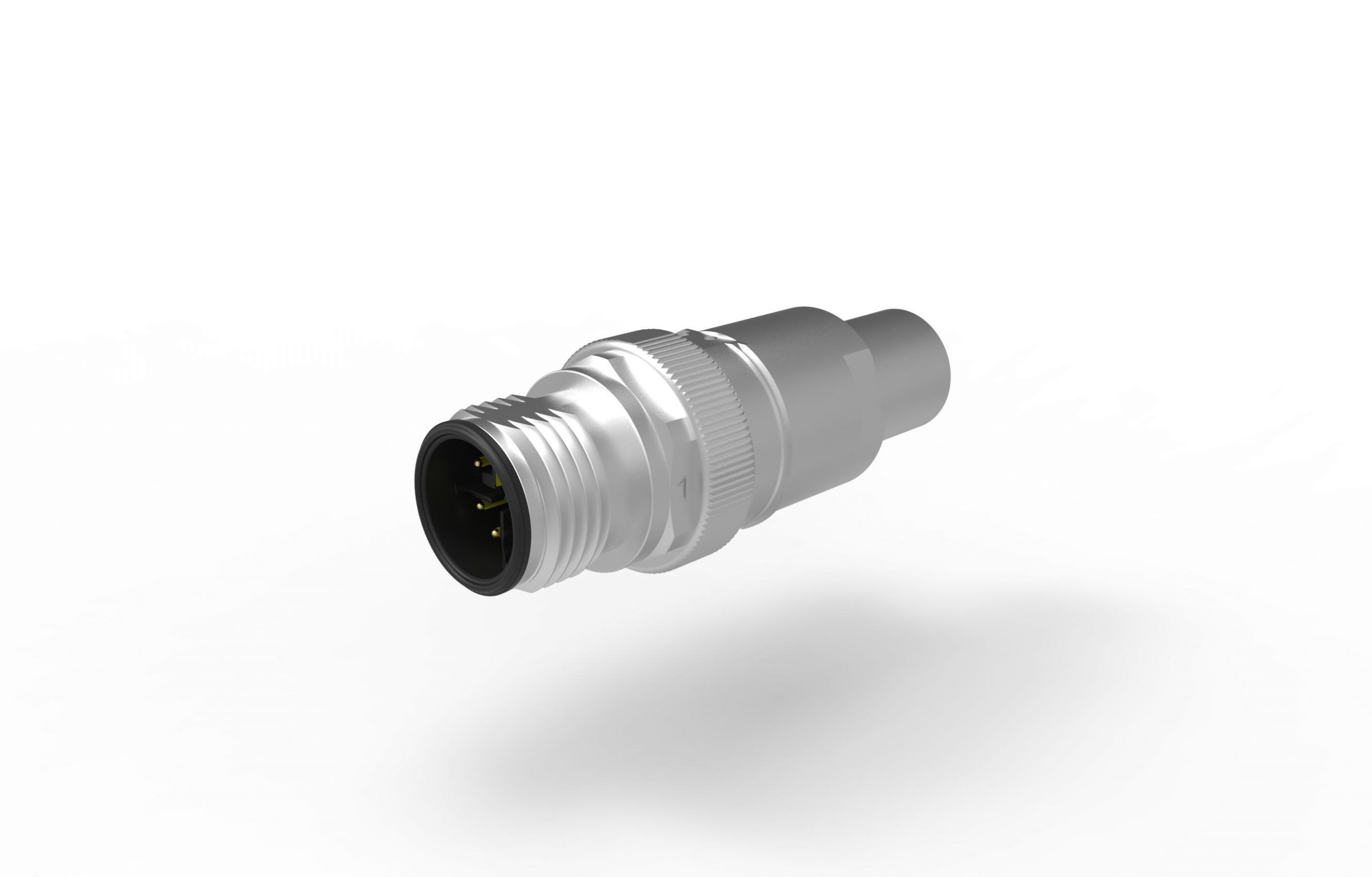

M12 Cable Connector EasyLine, Male X-Code
The 8-pin, 360 ° shielded, X-coded M12 cable connector is field attachable and suitable for 10 Gbit Ethernet Networks. Due to crimped contacts and crimped cable outlet the connector shows high resistance against vibration loads. Applications are connections of Ethernet switches and high-resolution cameras ports plus all industrial devices used in demanding environments. The sophisticated design allows an easy, fast and perfect assembly.
Technical features
– Most compact in length, small outer diameter
– Less individual parts, reduced assembly time
– 10 Gbit Industrial Ethernet and Profinet M12-field connection
– Vibration proof by crimp-technique (Railway specification)
– Effective 360° shielding achieved by full metal housing
– best corrosive protection wide temperature range
– M12 Locking nut with combi knurl
– hex contour for torque wrench, see accessories
|
Technische Daten / Technical data |
|
|
Steckgesicht / Connector mating face |
M12 gemäß / acc. to IEC 61076-2-109 |
|
Typ-Kodierung-Polzahl / Gender-Coding-No of pins |
Stift X-8 / Male X-8 |
|
Strombelastbarkeit/ Current rating |
0,5 A |
|
Bemessungsspannung / Nominal voltage |
48 V |
|
Durchgangswiderstand / Contact resistance |
≤ 10 mΩ |
|
Isolationswiderstand / Insulation resistance |
≥ 100 MΩ |
|
Überspannungskategorie/ Overvoltage category |
III |
|
Verschmutzungsgrad / Pollution degree |
3 |
|
Übertragungsgeschwindigkeit / Data transmission rate |
Cat. 6A (ISO 11801) / bis zu 10Gbit / up to 10Gbit |
|
Schutzart / IP protection |
IP 67 (im verriegelten Zustand / in locked condition) |
|
Temperaturbereich / Temperature range |
–40° C bis/to +105° C (kabelabhängig / dependend on cable) |
|
Mechanische Lebensdauer / Mechanical lifetime |
≥ 250 Steckzyklen / mating cycles |
|
Drehmoment / torque force |
max. 0,8 Nm; (M12 Verriegelungsschr. / M12 locking srew) |
|
Anschlusstechnik / Termination |
|
|
Kontakte /contacts |
crimp |
|
Aderquerschnitte / wire cross |
AWG 22-26 |
|
Kabel-Schirmanschluss / Cable shield connection |
Crimpflansch / crimp flange |
|
Materialien / Materials |
|
|
Gehäuse / Housing |
Cu-Legierung vernickelt / Cu alloy Ni plated |
|
Isolierkörper + Kontaktträger / |
Thermoplast I2/F2 acc. to NFF-16-101/102 and HL3 acc. to R22/R23 EN 45545-2 |
|
Kontaktmaterial / Contact material |
Cu-Legierung / Cu alloy |
|
Kontaktoberfläche /Contact plating |
Ni/Au |
|
Dichtungen / Sealings |
Elastomer |
