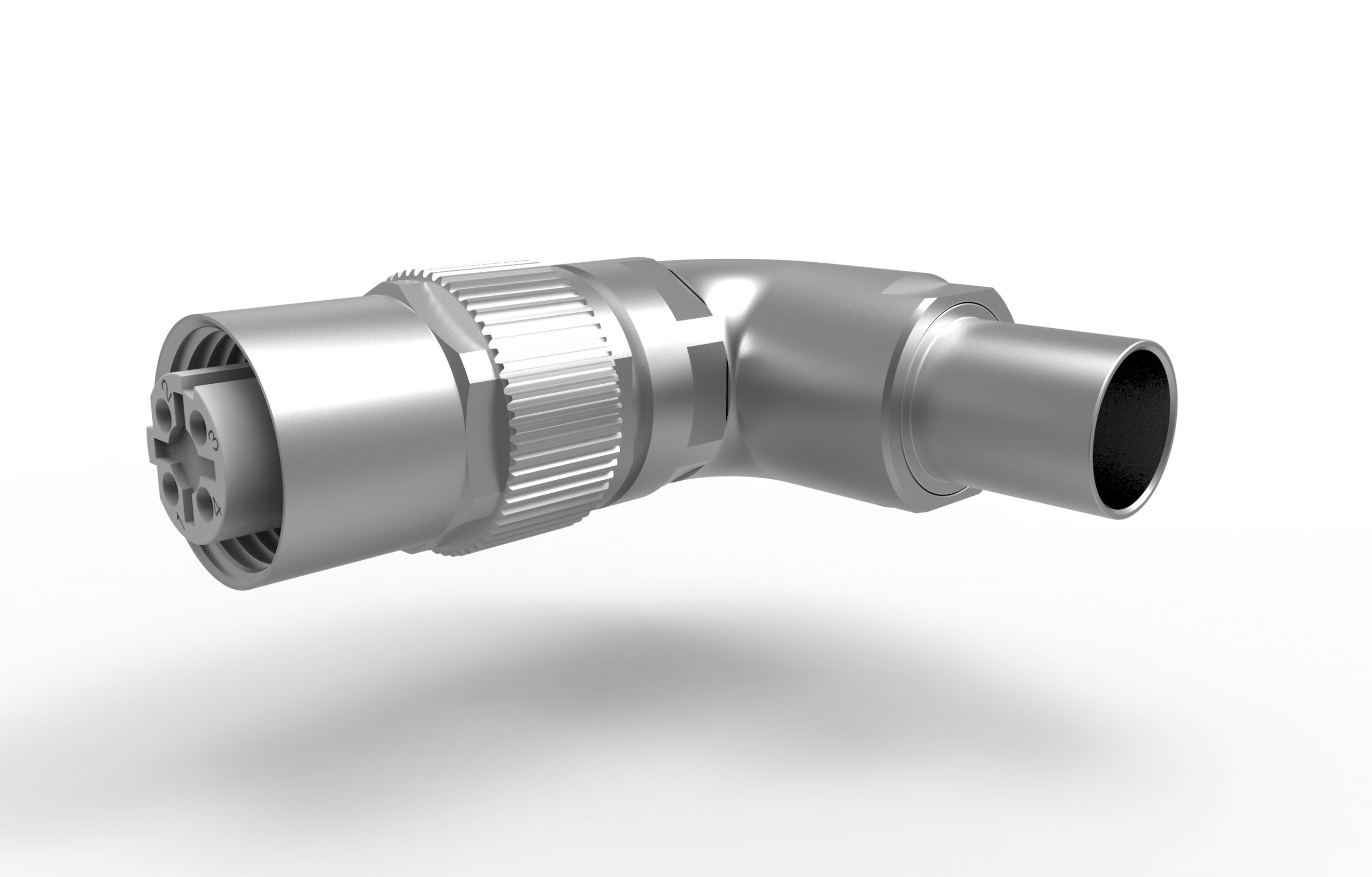

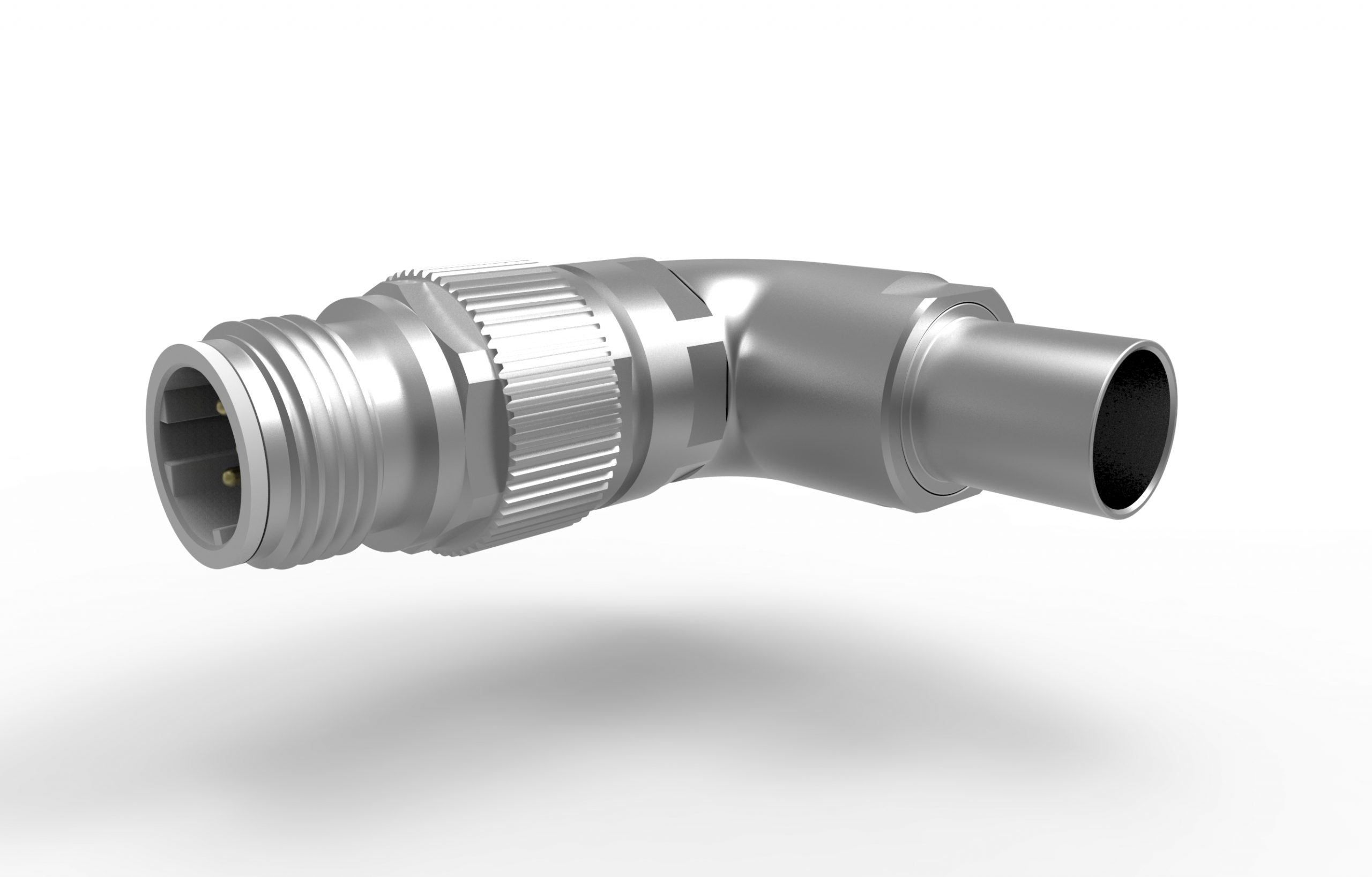

M12 D4 90° Crimp

The new 360° EMI/RFI M12 D-code connector crimp with 90° cable exit for Ethernet in protection class IP67 particularly fulfills the requirements for reliable Ethernet connections and interference-proof data transmission in railway technology, especially in situations with low installation depth. This is achieved through safe signal contacting via twisted solid crimp contacts and secure shield contacting through a very compact full-metal housing and a 360° EMI/RFI crimp flange system with vibration- and torsion-proof cable strain relief. The full-metal housing also provides high durability against damage in rough environments.

• The vibration-proof angled M12 Profibus field connector
• Reliable error-free data transmission under high demands
• Shielding and strain relief securely designed with crimp flange system
• Freely selectable 90° cable exit with 8 coding positions (8×45°)
• Easy adjustment of the cable exit during assembly
• High safety in the network with twisted crimp contacts
• Compact dimensions for applications with limited installation space
• Full-metal housing protects against interference and in harsh environments
• M12 locking with 6-kt combination knurl for defined tightening torque
• Easy assembly due to few individual parts
