M12 B Profibus Cable Plug Crimp KV

The 5-pole M12 KV with B-coding and cable gland, featuring two very wide cable clamping ranges of 4 – 6.5 mm and 5.5 – 9 mm, along with the fully shielded housing and shielded strain relief, is the reliable universal solution for all common cables, such as those used in Profibus applications.

Technical Features

– Very large cable clamping range: 4 – 9 mm
  2 versions: 4 – 6.5 mm and 5.5 – 9 mm

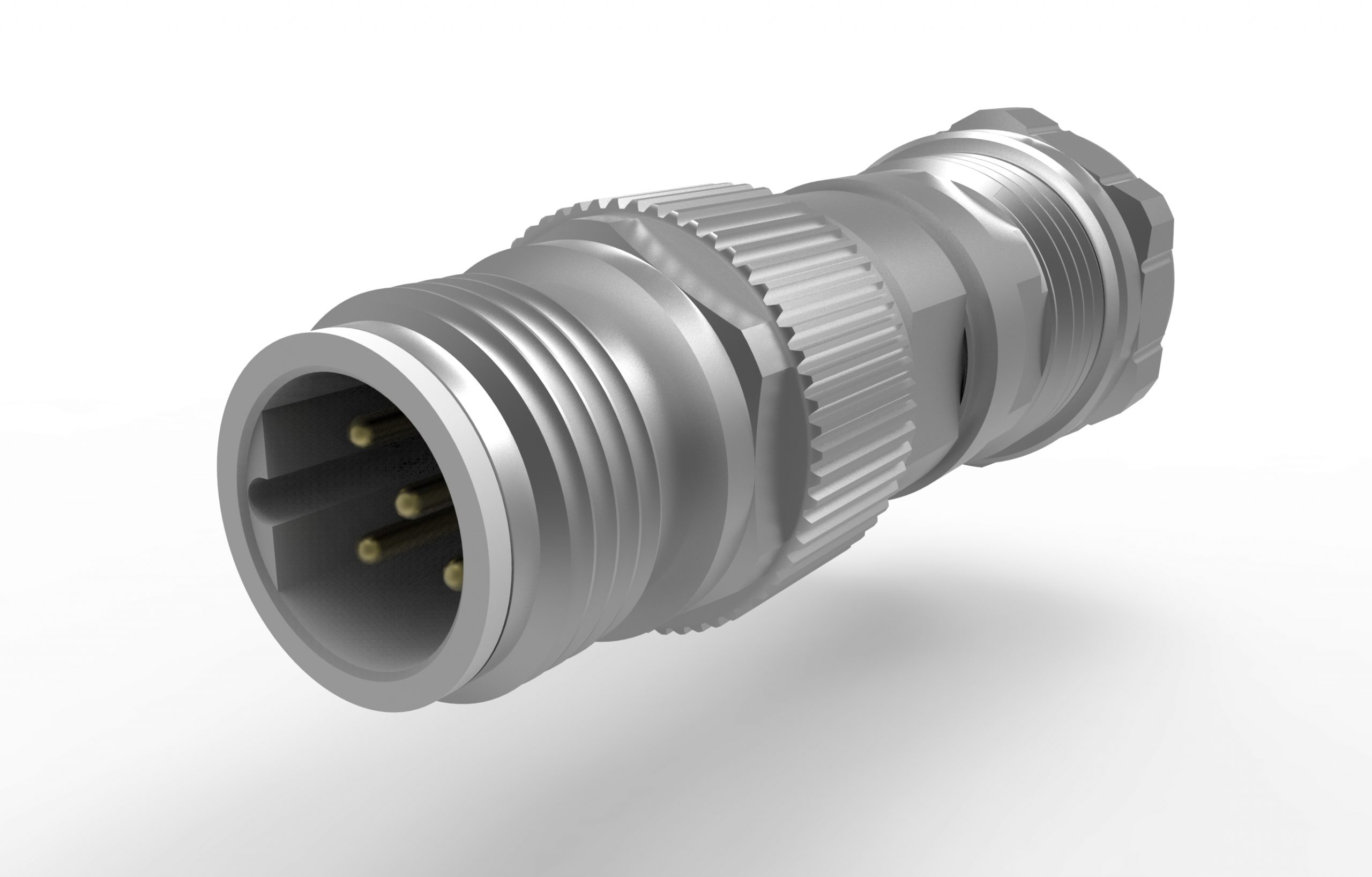

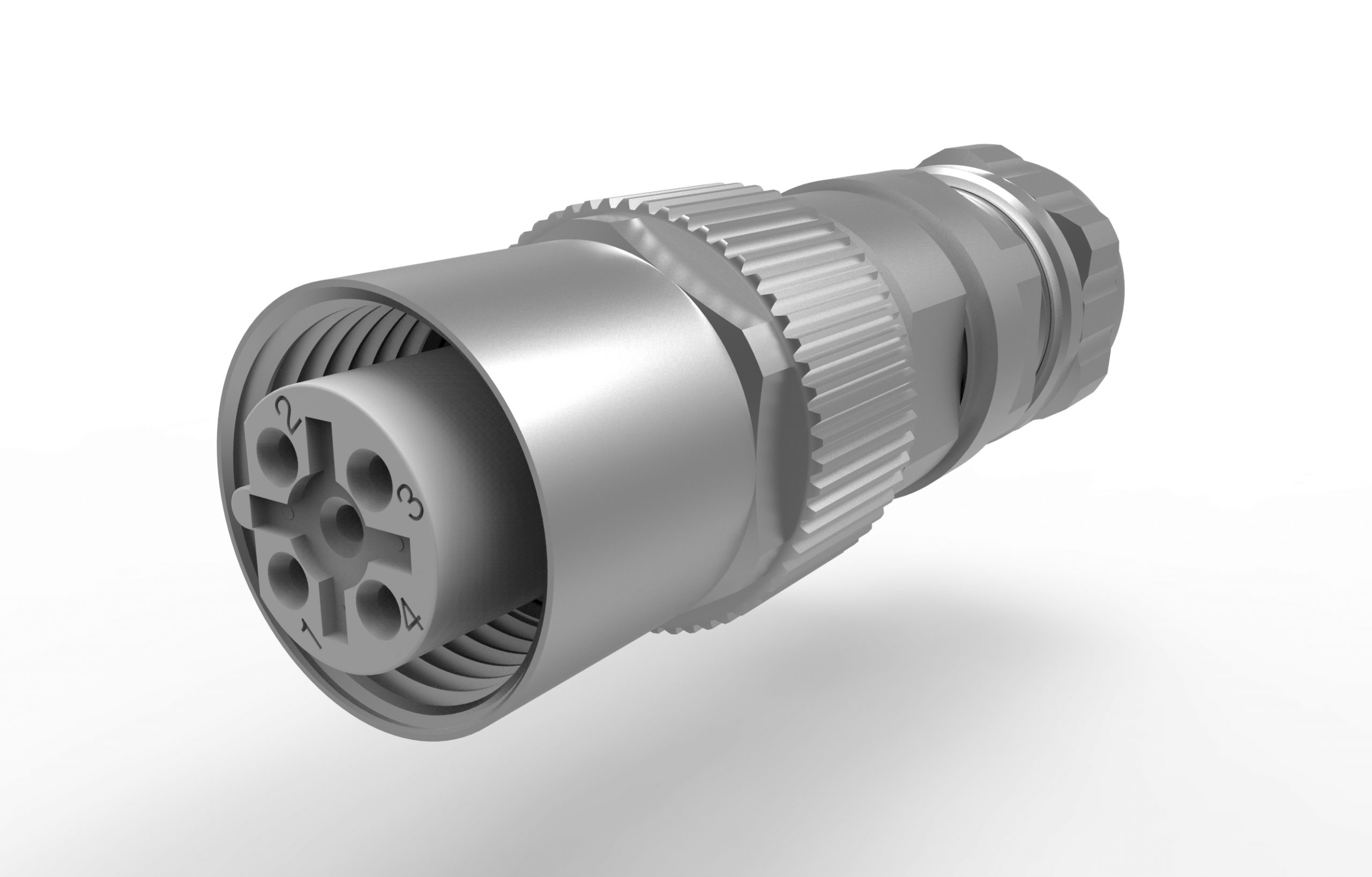

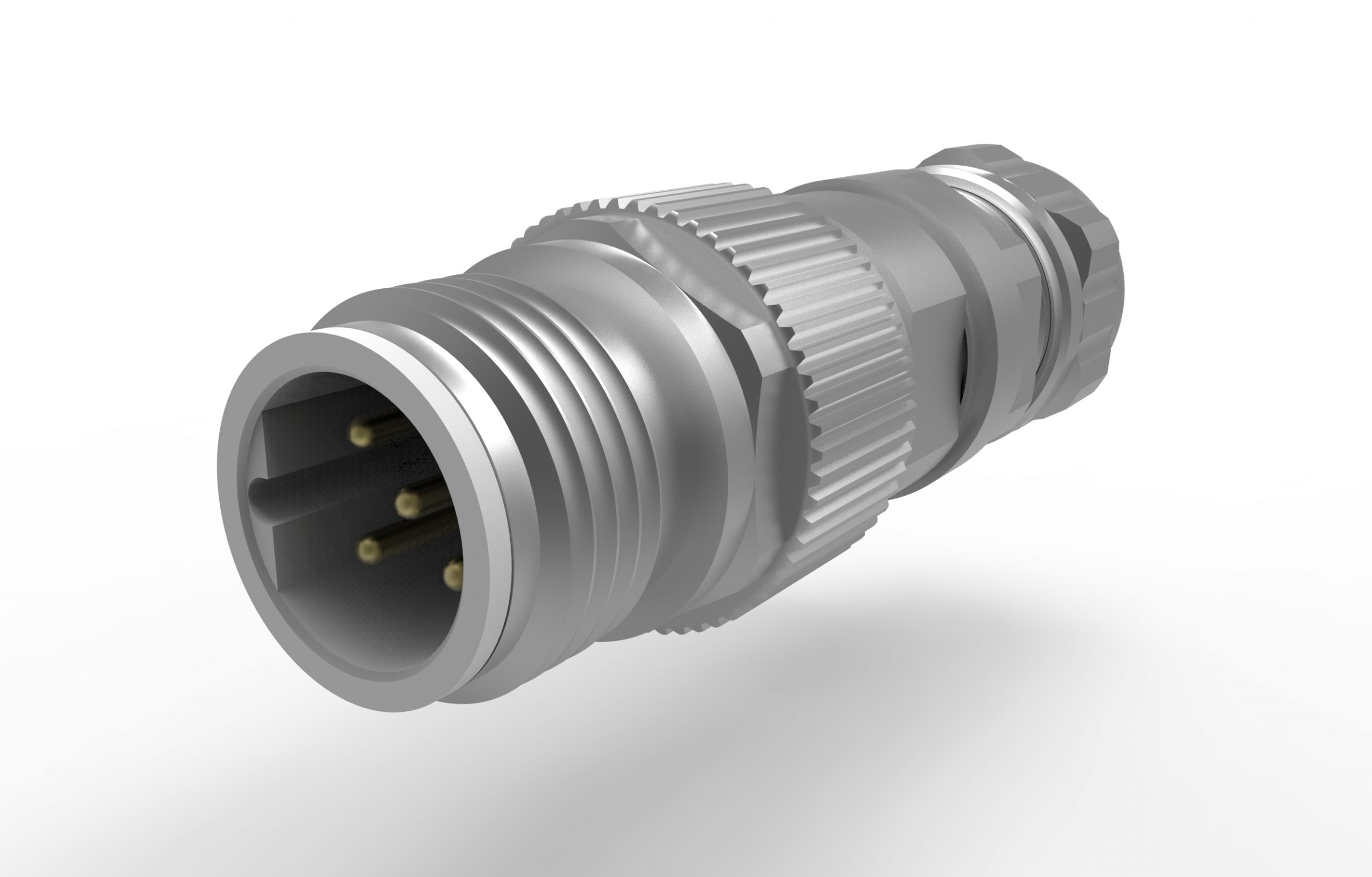

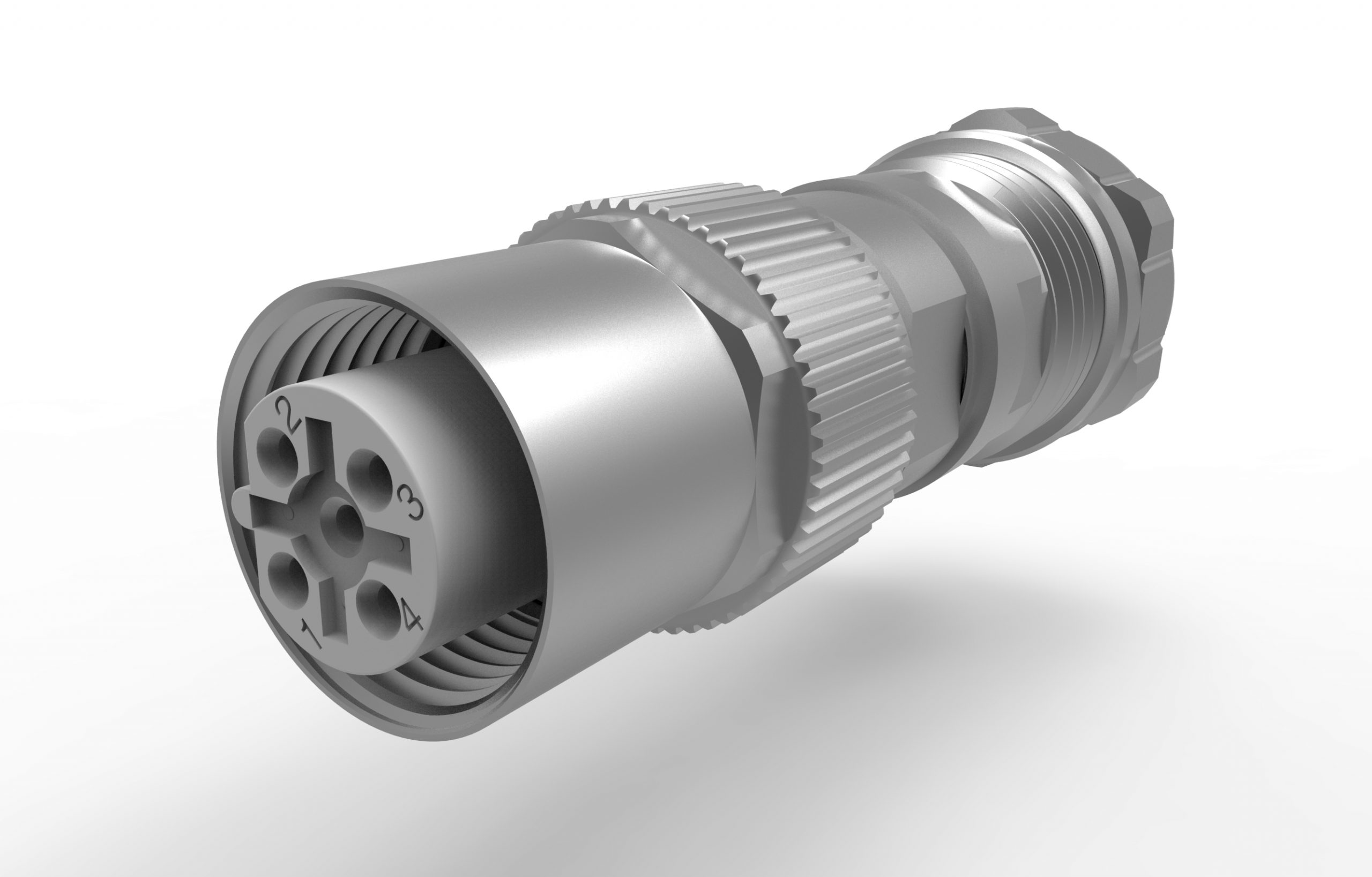

– Pin and socket versions available

– Contact versions for signal and power contacts
  Signal: AWG 20-22 and AWG 22-24 / Power: AWG 19-21

– Coding: B-code, 5-pole

– Effective 360° EMI/RFI shielding through a special full-metal housing and robust fully shielded strain relief.

– Easy assembly with few individual parts

– Compact dimensions with a small diameter

– M12 locking nut with combination knurling and hex for tightening with a defined torque
