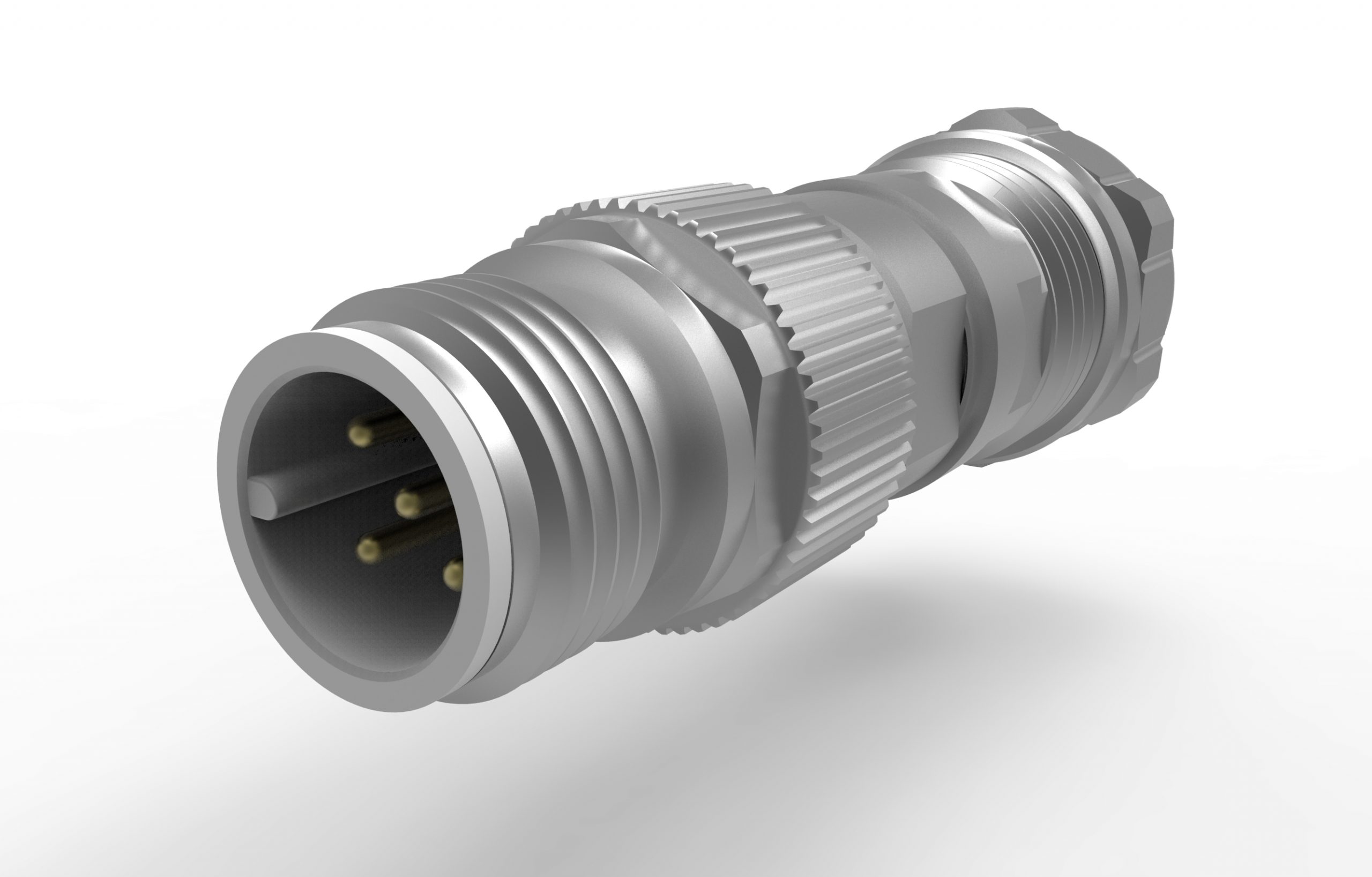

The 5-pin M12 KV with A-coding and 2 wide cable clamp ranges from 4 up to 6.5 mm and 5.5 up to 9 mm plus the fully shielded housing together with the shielded strain relief is the universal fail-safe solution for all common cables on the market like in CAN and DeviceNet applications.
Technical features
– Huge cable clamp range: 4–9mm
2 versions: 4–6.5 mm and 5.5 up to 9 mm
– Contact versions for signal and power
Signal: AWG 20-22 and AWG 22-24 / Power: AWG 18-20
– Male and female versions
– Coding: A coding 5-pin
– Effective 360° EMI/RFI shielding achieved by
special full metal housing and by a solid fully shielded strain relief
– Easy assembly due to only a few single parts
– Compact dimensions with small diameter
– M12 Locking nut with combined knurled and hexagon
shape for tightening with defined torque
Contacts and shield disc according to the cable type have to be ordered separately.
|
Technische Daten/Technical data |
|
|
Steckverbinder/Connector |
M12 gemäß/acc. to IEC 61076-2-101 |
|
Codierungs-Polzahl/Coding-Pin number |
A-5 |
|
Strombelastbarkeit/Current rating |
4 A |
|
Bemessungsspannung/Nominal voltage |
50 V DC |
|
Durchgangswiderstand/Contact resistance |
≤ 5 mΩ |
|
Isolationswiderstand/Insulation resistance |
≥ 100 MΩ |
|
Anschlussart Einzelader/Termination single wire |
Gedrehte Crimp Snap-in Kontakte vergoldet/ |
|
Aderquerschnitte/Wire sizes |
AWG 19–26 |
|
Kabelklemmbereich/Cable clamp range |
4–9 mm |
|
Schutzart/IP protection |
IP 67 (nur schraubverriegelt/only screw-locked) |
|
Temperaturbereich/Temperature range |
–40° C bis/to +85° C |
|
Mechanische Lebensdauer/Mechanical lifetime |
≥ 200 Steckzyklen/mating cycles |
|
Materialien/Materials |
|
|
Gehäuse/Housing |
Cu-Legierung vernickelt/Cu alloy Ni plated |
|
Isolierkörper +Kontakthalter/Insulator + contact holder |
Thermoplast I2/F2 according to NFF-16-101/102 and |
|
Kontakte/Contacts |
Cu-Legierung vergoldet/Cu alloy gold plated |
|
Dichtungen/Sealings |
Elastomer |
