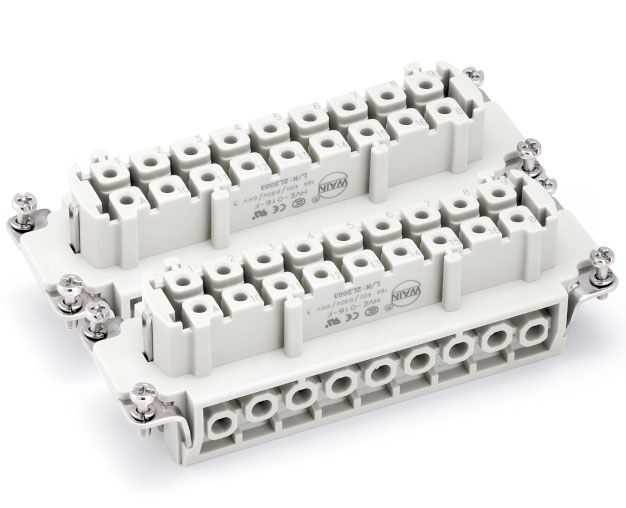

HVE-016-F(17-32)

Product number：HVE-016-F(17-32)

Column

HVE-016-F(17-32)

Part

Insert

Certified product

EAC CQC

Order number

124 016 021 0002

Do you need to order another cold press needle?

Product parameters

Inserts
Number of contacts	32(2x16)+PE
	+4 additional contacts for safe high voltage connections
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage conductor-ground	400V
---Rated voltage conductor-conductor	690V
---Rated impulse voltage	6kV
---Pollution degree	3
---or	16A 500V 6kV 3
Rated voltage acc. to UL	600V
Relay contacts	250V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	2.5mm²
---AWG	14
---Tightening/Test torque	0.5N·m
