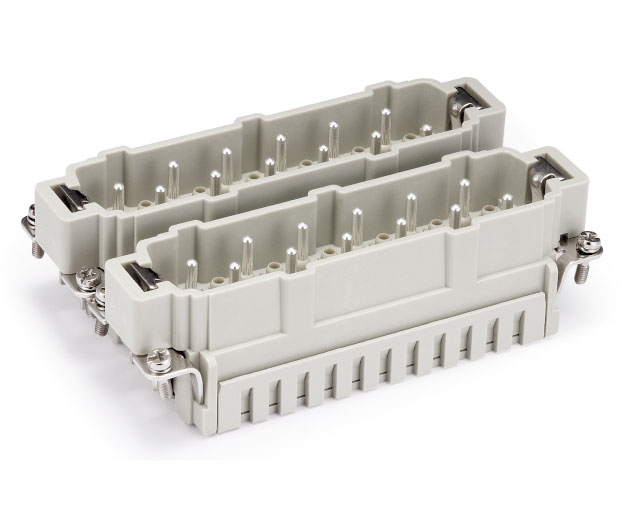

| Inserts | |
| Number of contacts | 20(2x10)+PE |
| +4 additional contacts for safe high voltage connections | |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 830V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 1000V 8kV 2 |
| ---or | 16A 720/1250V 8kV 2 |
| ---Relay contacts | 16A 500V 6kV 3 |
| Rated voltage acc. to UL | 600V |
| Relay contacts | 250V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤3mΩ |
| Spring terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Stripping length | 7-9mm |
