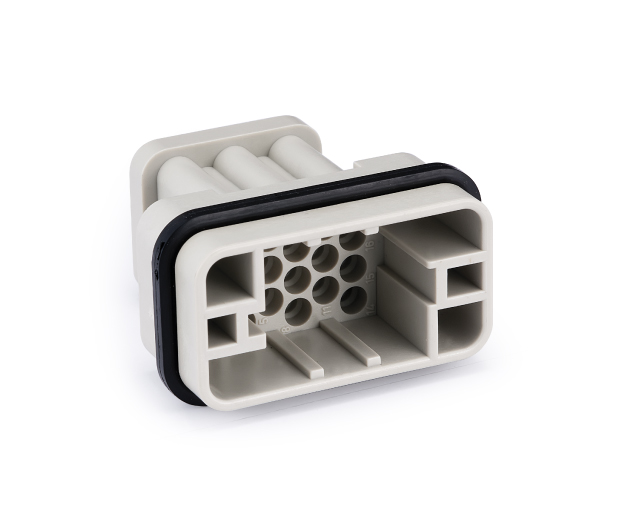

| Inserts | |
| Number of contacts | 17+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 2 |
| Rated voltage acc. to UL | 250V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
