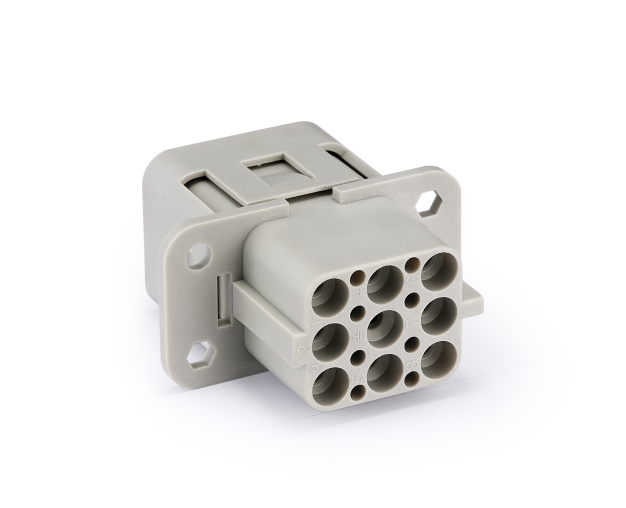

| Inserts | |
| Number of contacts | 8+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| ---Mounted metal hood | 16A 230/400V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-4mm2 partly loaded up to 4 mm2 is possible |
| ---AWG | 26-12 |
