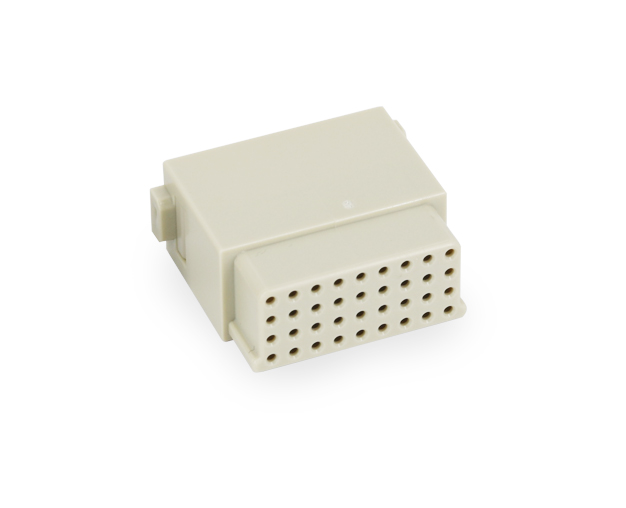

| Inserts | |
| Number of contacts | 36 |
| Electrical dataacc. to EN 61 984 | |
| －Rated current | 4A |
| －Rated voltage | 32V |
| －Rated impulse voltage | 0.8KV |
| －Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated / hard-gold plated |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| －mm2 | 0.09-0.52mm2 |
| －AWG | 28-22 |
