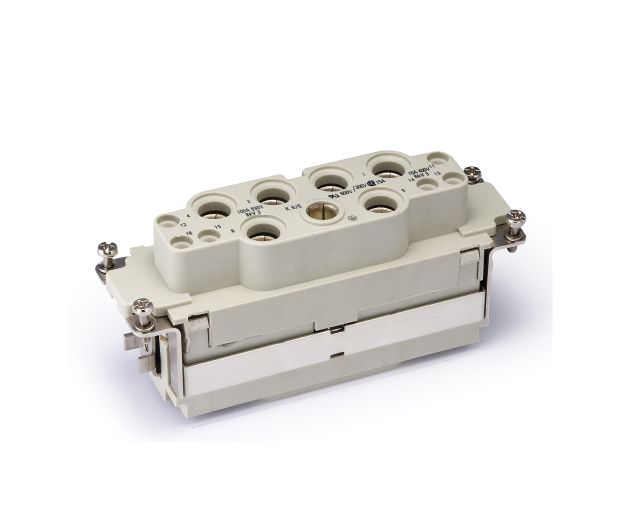

Inserts |
|
Number of contacts |
6/6+PE |
|
Electrical data acc. to EN 61 984 |
|
|
Power area |
|
|
---Rated current |
100A |
|
---Rated voltage |
690V |
|
---Rated impulse voltage |
8kV |
|
---Pollution degree |
3 |
|
---Pollution degree 2 also |
100A 1000V 8kV 2 |
|
Signal area |
|
|
---Rated current |
16A |
|
---Rated voltage |
400V |
|
---Rated impulse voltage |
6kV |
|
---Pollution degree |
3 |
|
Rated voltage acc. to UL |
600/300V |
|
Insulation resistance | ≥1010Ω |
|
Material |
polycarbonate |
|
Limiting temperatures |
-40℃...+125℃ |
|
Flammability acc. to UL 94 |
V0 |
|
Mechanical working life(mating cycles) |
≥500 |
|
Contacts |
|
Power contacts |
|
|
---Material |
copper alloy |
|
---Surface |
hard-silver plated |
|
---Contact resistance |
≤0.5mΩ |
|
---Axial screw termination |
|
|
------geometric wire gauge |
16-35mm² |
|
------AWG |
5-2 |
|
---Max. insulation diameter |
11.4mm |
|
---Tightening tourque |
|
|
------mm² | |
|
------Nm |
|
---Stripping length |
13(+ -1)mm |
|
Signal contacts |
|
|
---Material |
copper alloy |
|
---Surface |
hard-silver plated |
|
---Contact resistance |
≤3mΩ |
|
---Screw terminal |
|
|
------geometric wire gauge |
0.2-2.5mm² |
|
------AWG |
24-13 |
|
---Tightening tourque |
0.8Nm |
|
---Stripping length |
7.5mm |
