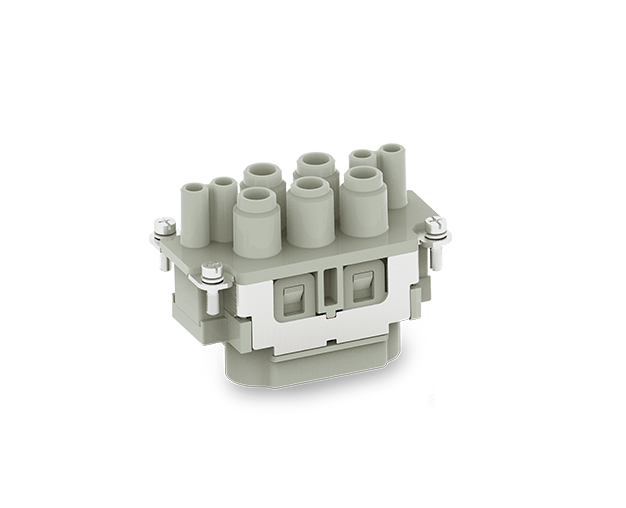

| Inserts | |
| Number of contacts | 4/4+PE |
| Electrical data acc. to EN 61 984 | |
| Power area | |
| ---Rated current | 63A |
| ---Rated voltage | 690V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| Signal area | |
| ---Rated current | 16A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL | 600/230V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Power contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| ---Contact resistance | ≤0.5mΩ |
| ---Screw terminal | |
| ------geometric wire gauge | 6-16mm² |
| ------AWG | 10-6 |
| ---Max. insulation diameter | 11mm |
| ---Stripping length | 11mm |
| Signal contacts | |
| ---Material | copper alloy |
| ---Surface | hard-silver plated |
| ---Contact resistance | ≤3mΩ |
| ---Spring terminal | |
| ------mm² | 0.14-2.5mm² |
| ------AWG | 26-14 |
| ---Stripping length | 7-9mm |
