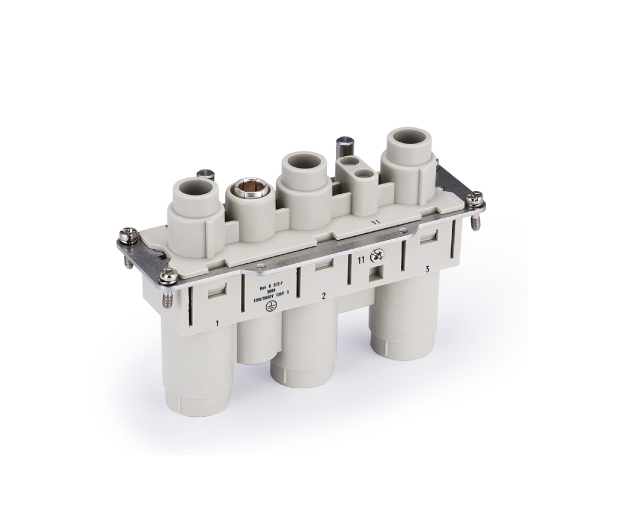

| Inserts | |
| Number of contacts | 3/0+PE |
| Electrical data acc. to EN 61 984 | |
| Power area | |
| ---Rated current | 200A |
| ---Rated voltage conductor | 1150/2000V |
| ---Rated impulse voltage | 8kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 200A 2000V 12kV 2 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | silver |
| Contact resistance | ≤0.2mΩ |
| For stranded wire acc. to IEC 60 228 Class 5 | |
| Axial screw termination | |
| Power contacts | |
| ---Wire gauge | 35-70mm² |
| ---AWG | 2-00 |
| ---Hexagonal driver | SW5 |
| ---Stripping length | 22mm |
| ---Tightening torque | mm² 35 50 70 |
| N.m 8 9 10 | |
| PE contact | |
| ---Wire gauge | 16-35mm² |
| ---AWG | 5-2 |
| ---Hexagonal driver | SW4 |
| ---Stripping length | 14mm |
| ---Tightening torque | 6Nm |
