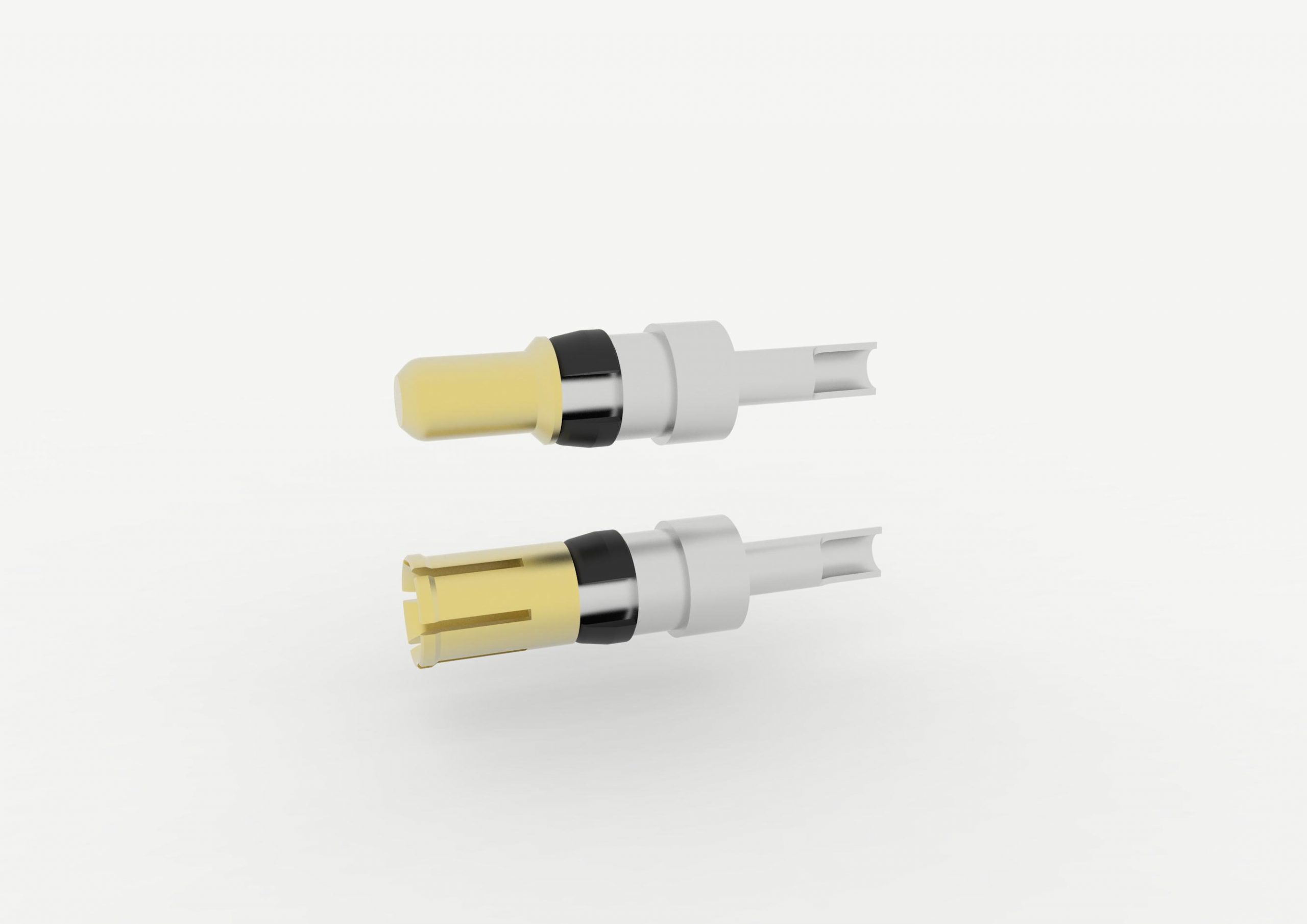

High power contacts Solder pot connection

Currents:10 A/20 A/40 A
Twisted precision contacts from Cu-alloy
Fully gold-plated via Ni-barrier and tin-plated connection area
Various surfaces for different lifetime requirements
Highest quality and lifetime due to defined contact zone
For the use in D-Sub hermaphroditic connectors

Technical Details

Operating current	10 A/20 A/40 A
Wire cross-section 10 A/20 A/40 A	AWG 16-AWG 20/AWG 12-14/AWG 8-10
Contact resistance	≤ 1 m Ω
Insulation resistance	10 G Ω
Temperature range	-55° C bis +125° C
Quality class	1 = 500 mating cycles
Quality class	2 = 200 mating cycles
Contacts	Cu-alloy
Contact surface	Fully gold-plated via Ni-barrier or selectively gold-plated (depending on version)

High Power Solder Pot
Current rating	Pin Part no.	Socket Part no.	Dimensions
			Ø A	Ø B
10 A	P5110G2	P6110G2	1.90	2.56
20 A	P5120G2	P6120G2	2.80	3.65
40 A	P6120G2	P6140G2	4.90	5.50
