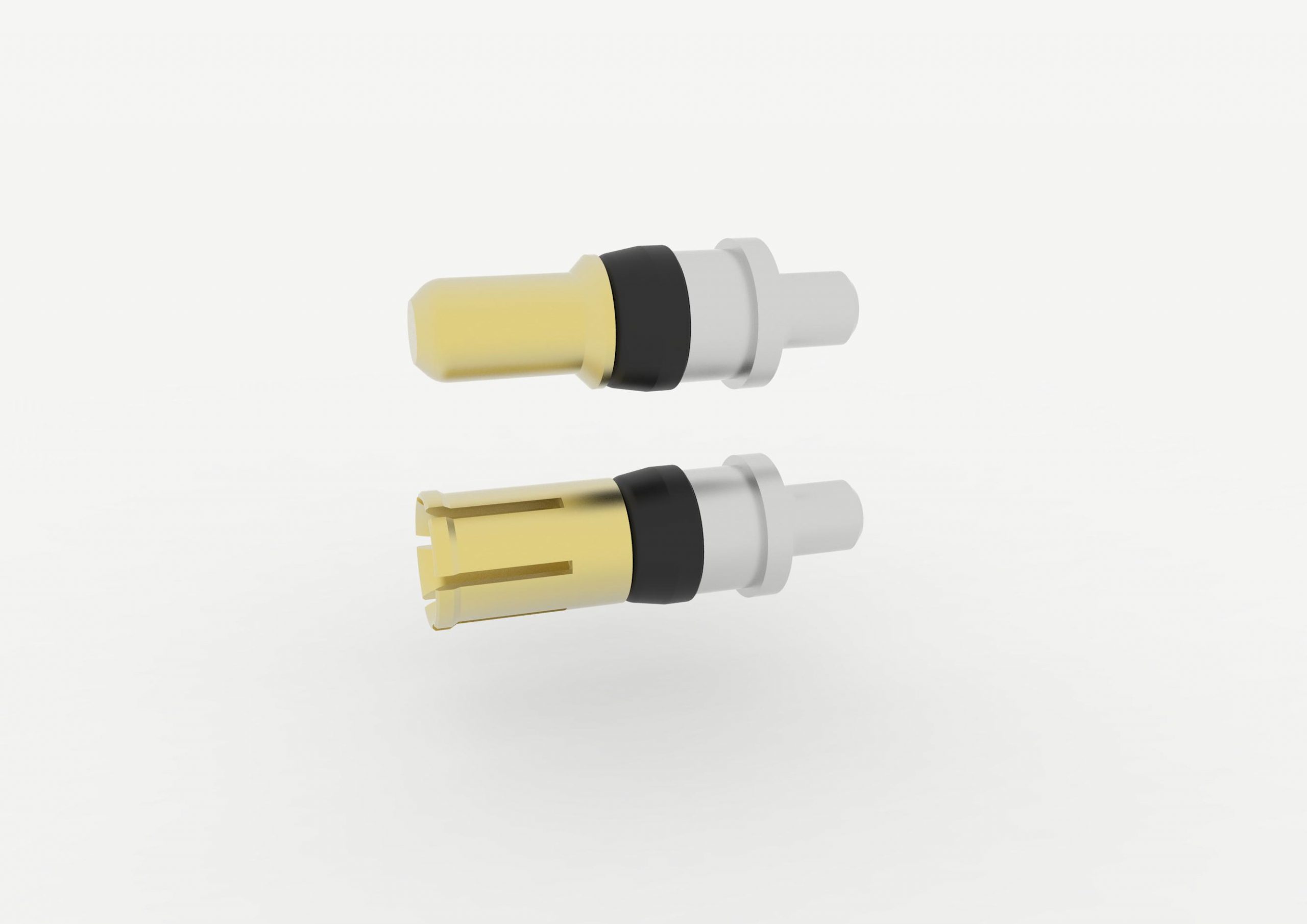

High power contacts solder pin 180°

Machined contacts

Machined precision contacts of Cu-alloy
Fully gold-plated with Ni barrier layer
Various surfaces for different lifetime requirements
Highest quality and lifetime due to defined contact zone
Current carrying capacity: 20 A and 40 A

Technical Details

Electrical and mechanical numbers
Operating current	20 A/40 A
Contact resistance	≤ 10 m Ω
Isolation resistance	10 G Ω
Temperature range	-55° C to +125° C
Materials
Contacts	Ms and Cu alloy
Contact surface	Gold-plated with Ni barrier layer

HOCHSTROMKONTAKTE EINLÖTANSCHLUSS GERADE
NENNSTROM	STIFT ART.-NR.	BUCHSE ART-NR.	ABMESSUNGEN
			Ø A	Ø B	R
20 A	P5220G2	P6220G2	4.7	2.79	1
40 A	P5240G2	P6240G2	5.75	3.69	0
