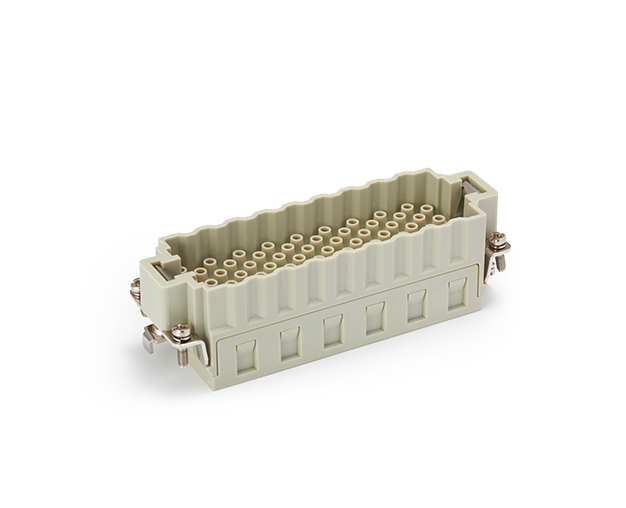

| Inserts | |
| Number of contacts | 72+PE |
| Rated current | 16A |
| Rated voltage | 400V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| --Wrie gauge | 0.14-4.0mm2 |
| --AWG | 26-12 |
| --Stripping length | 7.5mm |
| Tools | |
| Crimping tool | TL02G(0.5-4mm²) |
| TL02(0.14-0.37mm²) | |
| Contact removal tool | TL01 |
