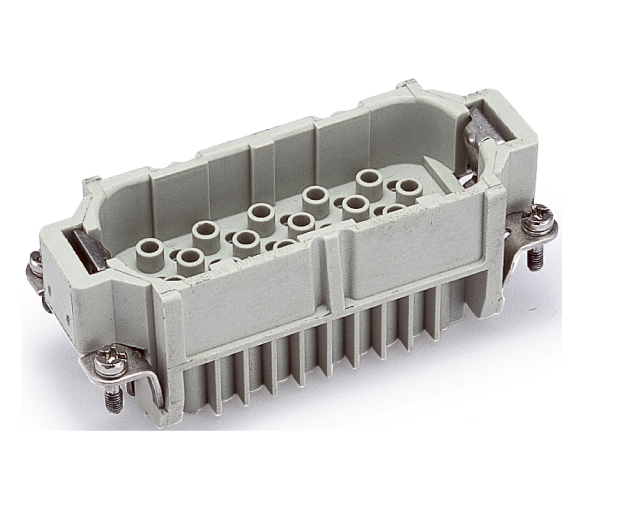

| Inserts | |
| Number of contacts | 40+PE |
| －-Rated current | 10A |
| －-Rated voltage | 250V |
| －-Rated impulse voltage | 4KV |
| －-Pollution degree | 3 |
| －-Pollution degree 2 also | 10A 230/400V 4KV 2 |
| －-Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Stampede contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤5mΩ |
| Crimp terminal | |
| －Wire gauge | 0.5-2.5mm2/1.5-2.5mm2 |
| －AWG | 20-16/16-14 |
| －Stripping length | 6mm |
