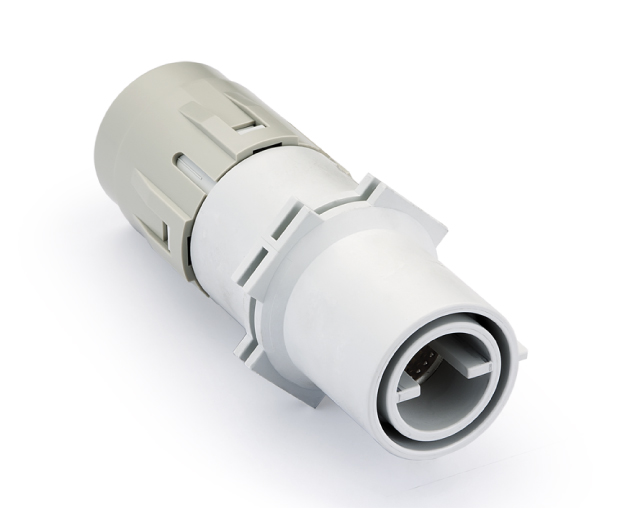

_V10-16380058256.jpg)
| Inserts | |
| Number of contacts | 1,2,3 |
| Electrical data acc. to EN 61 984 | |
| without adapter | |
| －Rated current | 650A |
| －Rated voltage | 2000V |
| －Rated impulse voltage | 12KV |
| －Pollution degree | 3 |
| with adapter | |
| －Rated voltage | 4000V |
| －Rated impulse voltage | 18KV |
| －Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | polyamide |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | silver |
| Contact resistance | ≤0.2mΩ |
| For stranded wire acc. to IEC 60 228 Class 5 | |
| Axial screw termination | |
| ---Wire gauge | 150-185mm² |
| ---MCM | 300-350 |
| ---Stripping length | 23-25mm |
| ---Max. cable diameter | 26.5mm |
| ---Tightening torque | mm² 70 95 120 150 185 |
| N.m 12 14 16 17 18 | |
| Screw terminal | |
| ---Thread | M12 |
| ---Tightening torque | 16-18Nm |
| Frame | |
| Material | stainless steel |
| Tightening torque of the M3 fixing screws | 0.5Nm |
