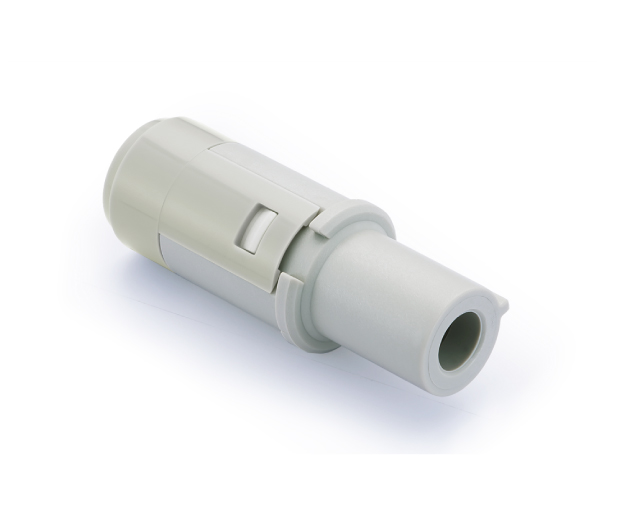

| Inserts | |
| Number of contacts | 1,2,3,4,3+PE |
| Electrical data acc. to DIN EN 61 984 | |
| －Rated current | 250A |
| －Rated voltage | 2000V |
| －Rated impulse voltage | 12KV |
| －Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | Copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤0.3mΩ |
| Crimp terminal | |
| －mm2 | 35-70mm2 |
| Max. insulation diameter | 18mm |
| Crimp dies | acc. to DIN 46 325 |
| Pressing force requirement | 130kN |
| Frame | |
| Material | stainless steel |
| Tightening torque of the fixing screws | 0.5Nm |
