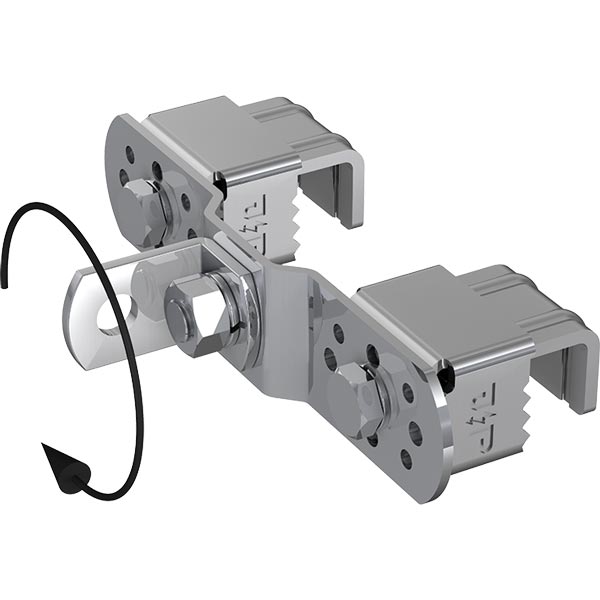

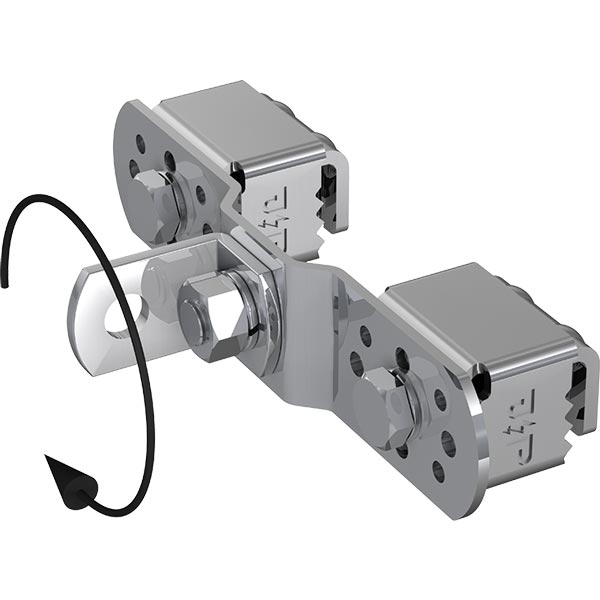

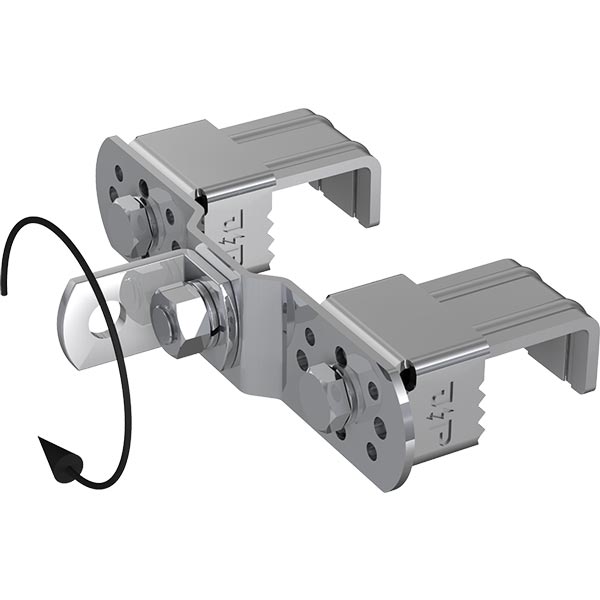

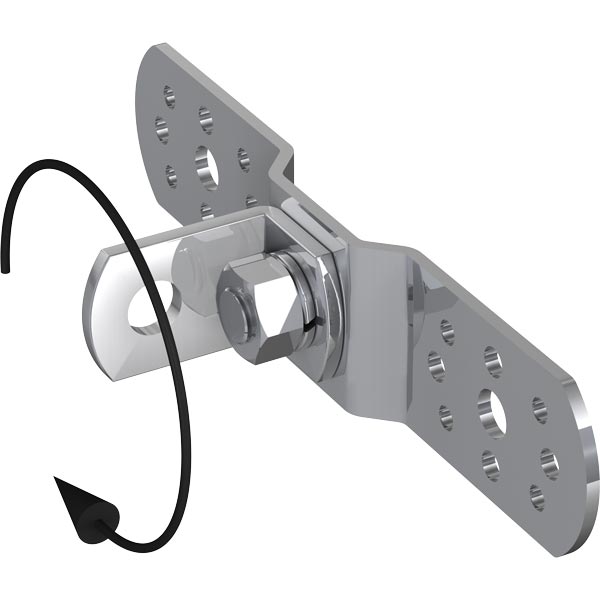

Fixing element for insulated stand-off with flat mounting plate and connection angle.
Material: stainless steel V2A
Mounting plate dimensions: 185 x 40 x 3 mm (length x width x thickness)
Connection angle dimensions: 40 x 55 x 4 mm, 30 mm (length x height x thickness, width)
Hole connection angle: Ø 12.5 mm
Screw: M12x20 mm with nut and spring lock washer
