Product Detail

according to EN 62561-1 to be used for the connection to the reinforcement, earth termination system or down conductor.

Contact plate: Ø 80 mm
Material of contact plate: stainless steel V4A
Mounting holes: 3 x Ø 4 mm

For more detailed information, you can review the page in the link below.

Detail Information

Technical Details

Specification:

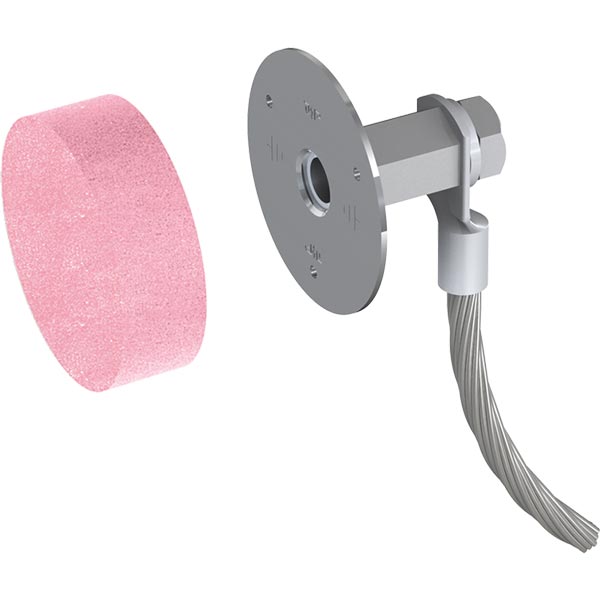

Connection cable 70mm² Cu/Sn 400 mm

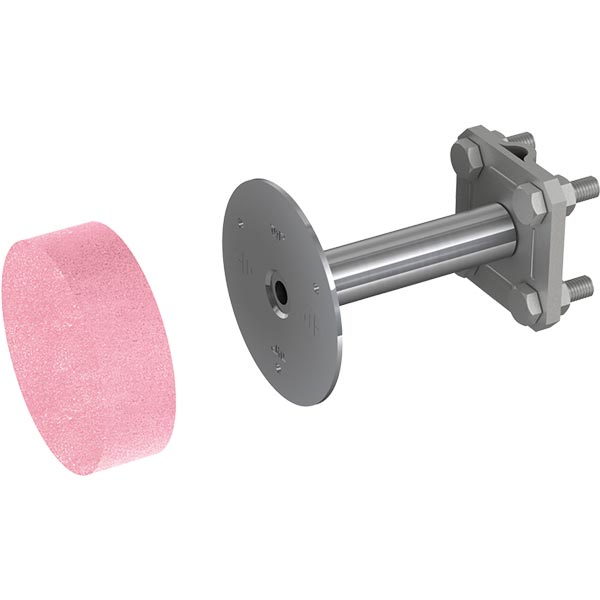

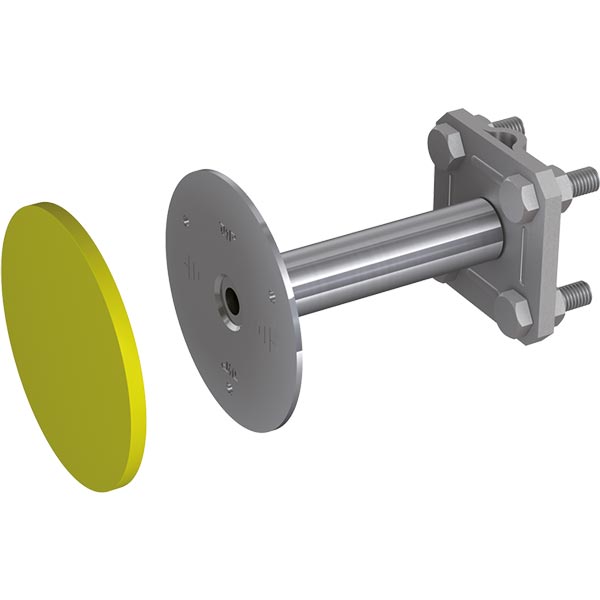

Cross clamp fl. 30, connection thread M10

Cross clamp fl. 30, connection thread M12

Cross clamp fl. 40, connection thread: M12 / M16

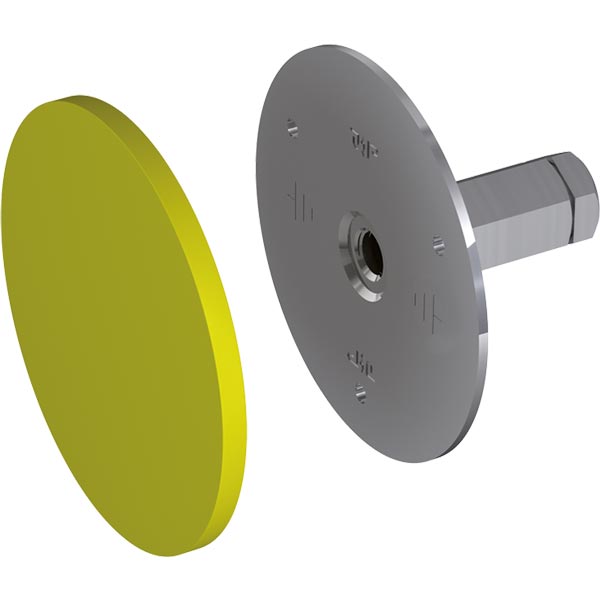

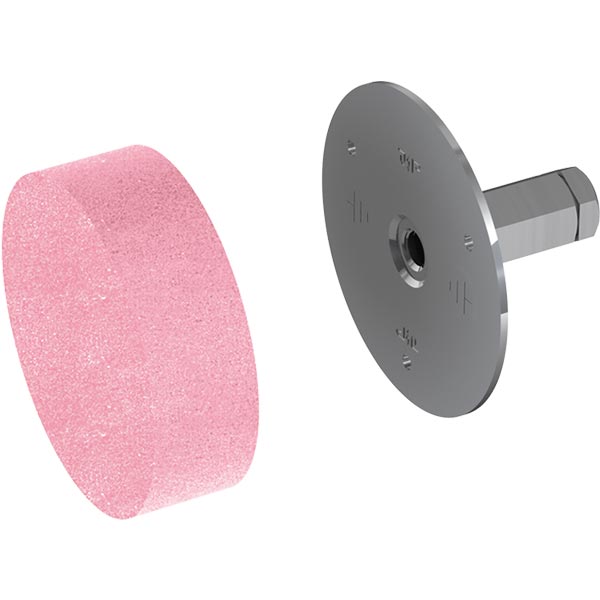

Hexagon extension nut M10 stainless steel V2A

Hexagon extension nut M12 stainless steel V2A

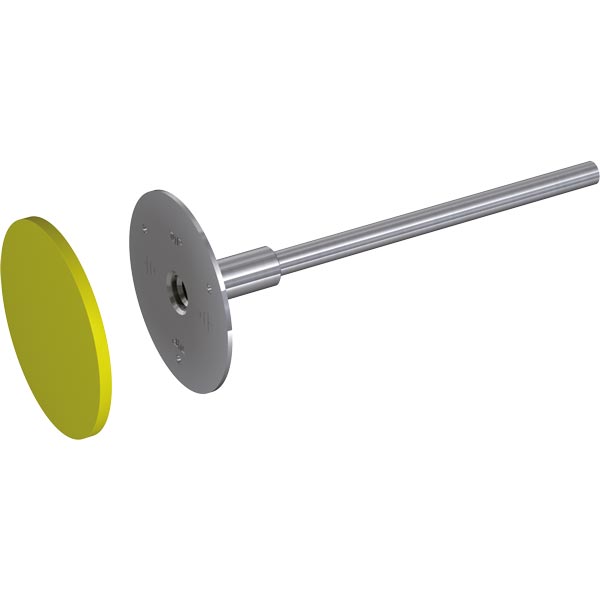

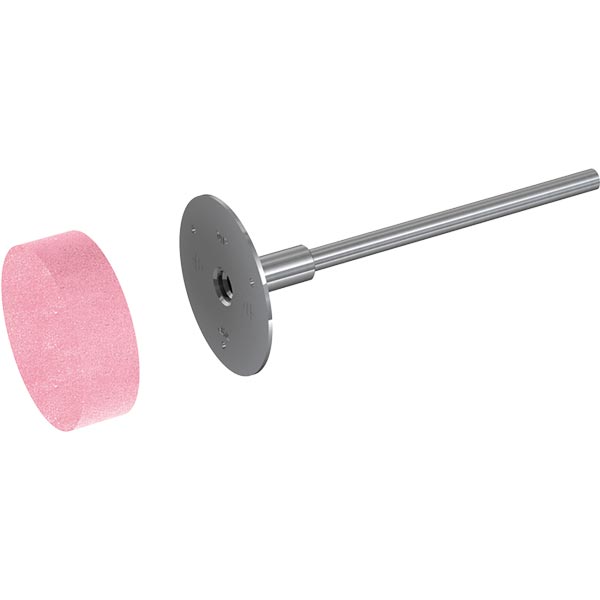

Terminal stud ø 10 mm stainless steel V2A

Terminal stud ø 10 mm steel

Terminal stud ø 10 mm steel, threaded sleeve ø 20 mm

Terminal stud ø 12 mm steel, threaded sleeve ø 20 mm

Terminal stud ø 12 mm steel, threaded sleeve ø 25 mm

Cover:

Foam

Plastic
