Product Detail

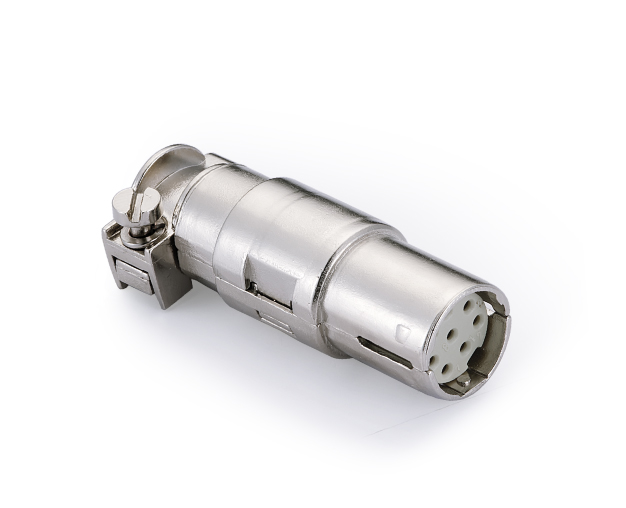

Product number:EMC-008-FC
Column
EMC-008-FC
Part
Insert
Certified product
UL CE EAC
Order number
129 008 020 0082
Do you need to order another cold press needle?
YES

Technical Details

Technical Details
Product parameters
Q-Coax contacts
Number of contacts
-High Density Q-Coax 8+shielding
Electrical data acc. to EN 61 984
-High Density Q-Coax 5A 50V 0.8kv 3
Rated current 5A
Rated voltage 50V
Rated impulse voltage 0.8kv
Pollution degree 3
Material
-Insulator polycarbonate
-Outer conductor zinc alloy
Contact resistance ≤4mΩ
Limiting temperatures -40℃...+85℃
Flammability acc. to UL 94 V0
Outer surface finish nickel
Cable diameter 3-9.5mm
