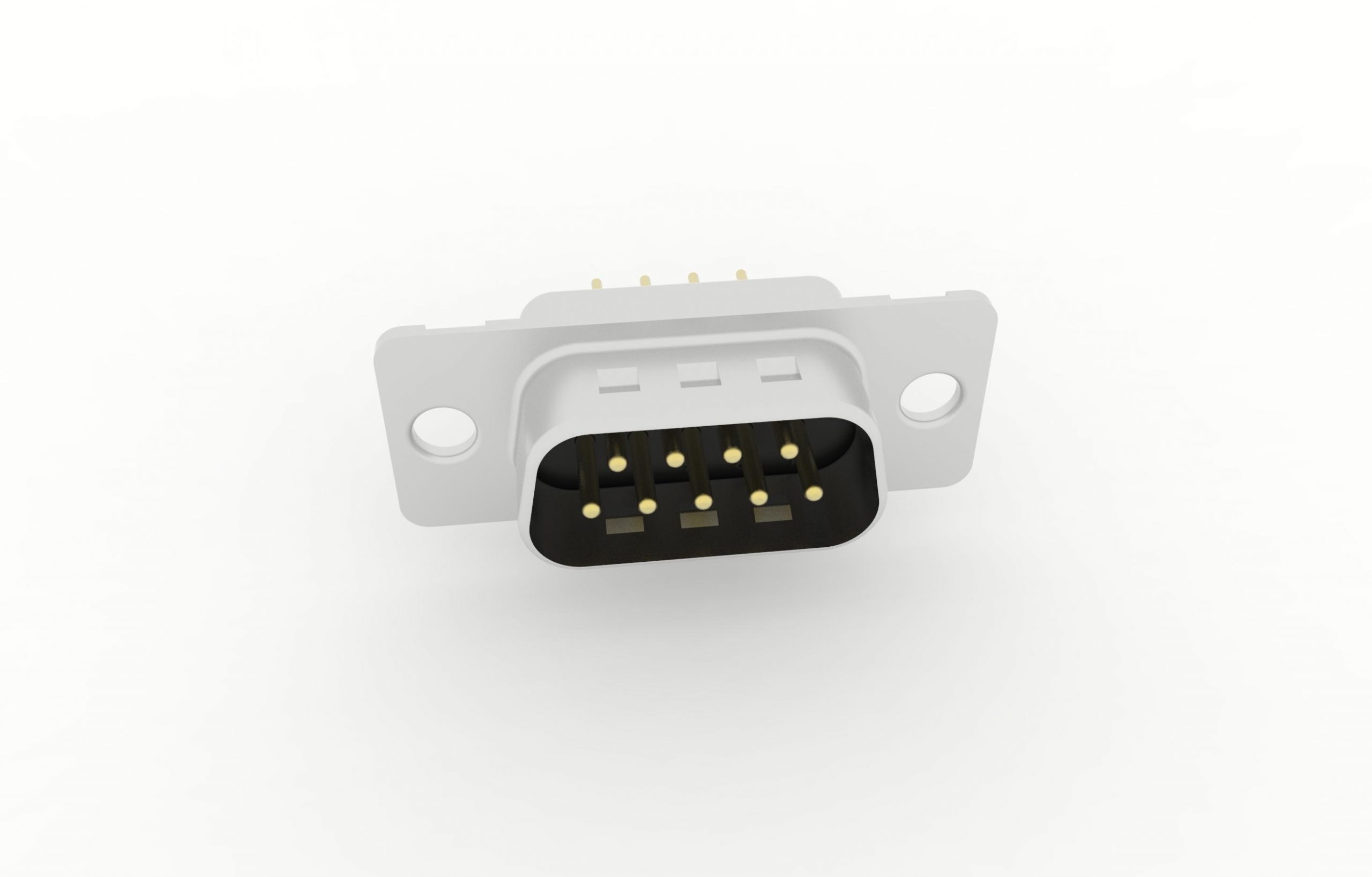

D-Sub Filter connectors with straight filtered signal contacts with solder pin
in turned high quality version
Capacitance value: 1000 pF (other capacitance values from 2 pF up to 2000 pF upon request)
Selective filtering of each contact upon request possible
Hf-proof sealed metall rear side
High attenuation up to 50 dB
100 % guaranteed quality due to individual test for every connector
Assembly dimensions of the standard connectors
|
Technical specifications |
|
|
Size |
9, 15, 25, 37, 50 |
|
Nominal temperature |
-25° C — + 85° C |
|
Rated voltage |
100 VDC (variation No. 01 (2000 pF) = 50 VDC) |
|
Test voltage |
200 VDC (variation No. 01 (2000 pF) = 125 VDC) |
|
Rated current |
5 A DC max. |
|
Insulation resistance |
1 GΩ min. @ 25° C |
