Product Detail

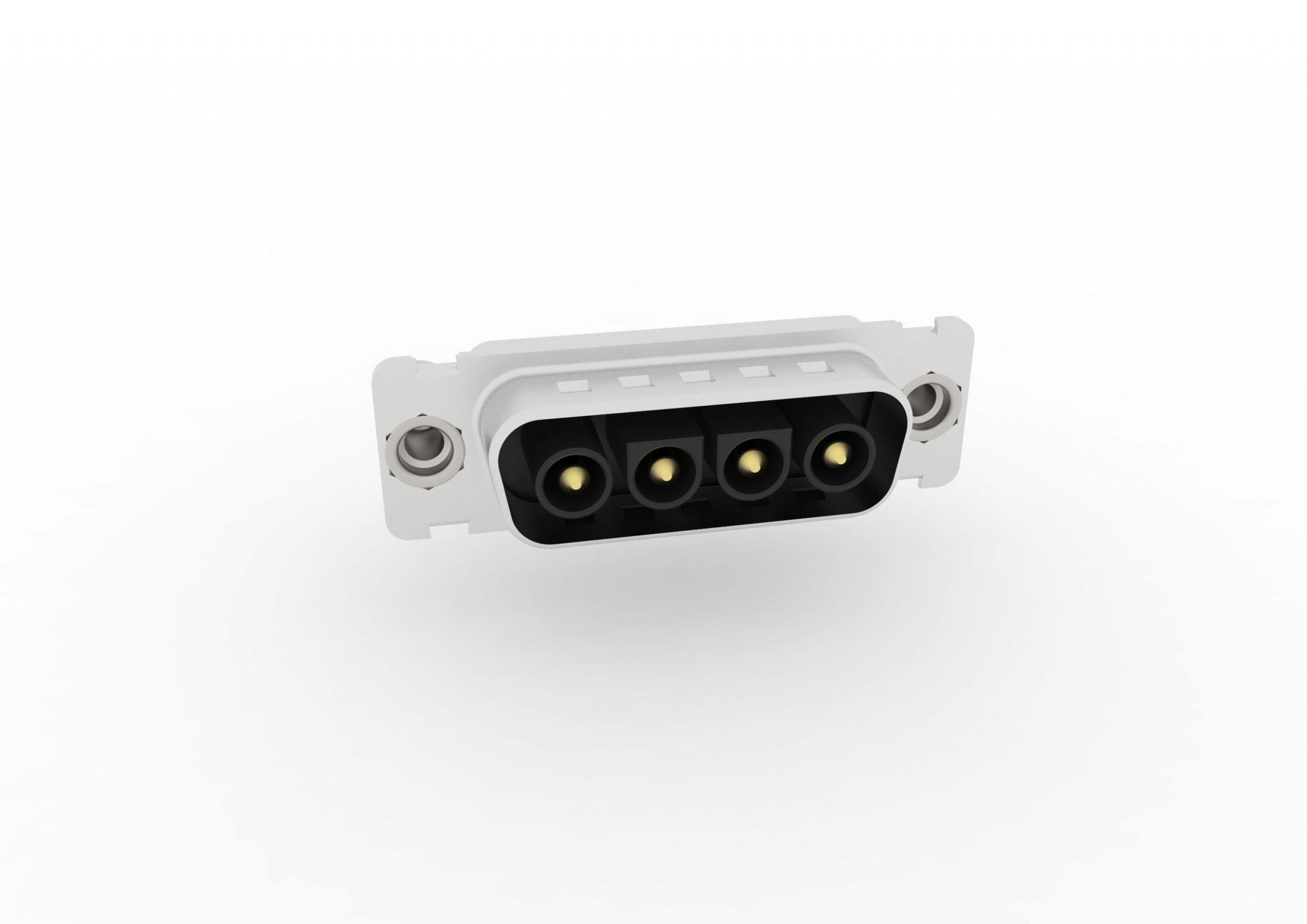

D-Sub Connectors 600V Solder Pin 180°
The 600V D-Sub connector series was developed by Provertha especially for compact power applications with easy and fast cable assembly.
This is achieved by the special design of new crimp contacts and insulators.
Especially with the Quick Lock D-Sub hood with the innovative push-pull locking for the simple one-hand mating the easy and fast cable assembly is achieved.
The 4 pole connector system has touch-proof female connector versions according to VDE 0110. The D-Sub power connectors allow for field assembly direct at factory lines with turned crimp contacts. And according crimp tools and for economical system cable harnessing by use of stamped contacts.
The 600V connectors are ideal for applications in drives, painting systems and robots.
- Male and female version
- Straight turned solder pin contacts for high current carrying capacity
- Contacts gold-plate over Ni barrier layer
- Solid metal bracket for secure absorption of the mating and unmating forces
- Locking clip as option for safe positioning and fixing on the PCB before the solder
process
- Mounting cut-out acc. to the 15 pole D-Sub
