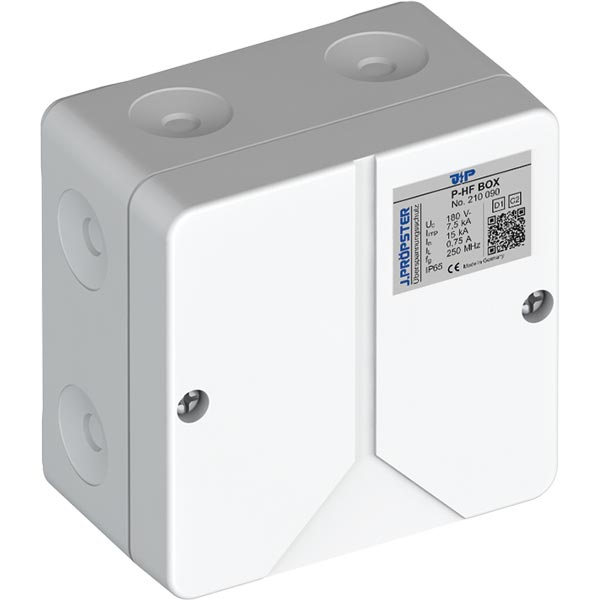

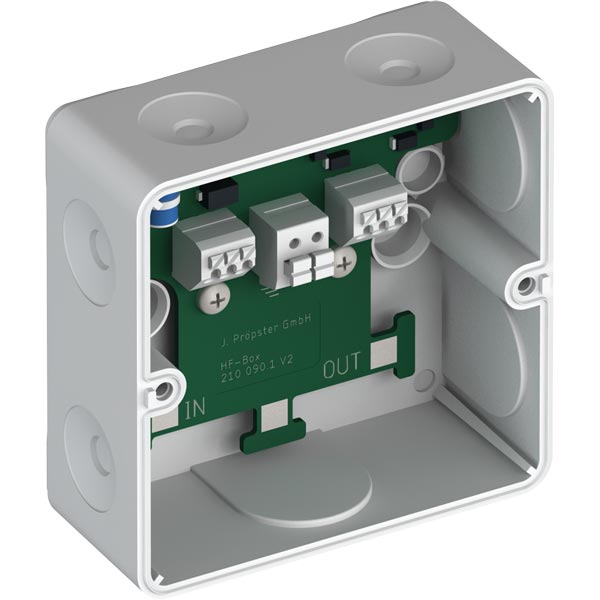

| Combined arrester in a surface-mounted enclosure specially designed for the use in telecommunications interfaces. | |
| SPD class: | D1 + C2 |
| Max. continuous voltage Uc: | 180 V ~ |
| Lightning impulse current / total Iimp (D1): | 7,5 kA (10/350 µs) |
| Nominal discharge current / total In (C2): | 15 kA (8/20 µs) |
| Nominal current Il: | 0.75 A |
| Bandwidth <3 dB: | 250 MHz |
|
Dimensions (length x width x height): For more detailed information, you can review the page in the link below. |
93 x 93 x 55 mm |
