| according to DIN EN 62561-1 for secure connection of different materials to gutters. | |
| Highest security by perfect mechanical clamping - without bead damage. | |
| Material conductor clamp: stainless steel V2A | |
| Fit: Ø 6-8 mm | |
| Material bead clamp: copper | |
| Bead thickness: up to Ø 20 mm | |
| Material of clamping plate: Bimetal aluminium/copper | |
| Screw: Hexagon bolt M8, stainless steel V2A | |

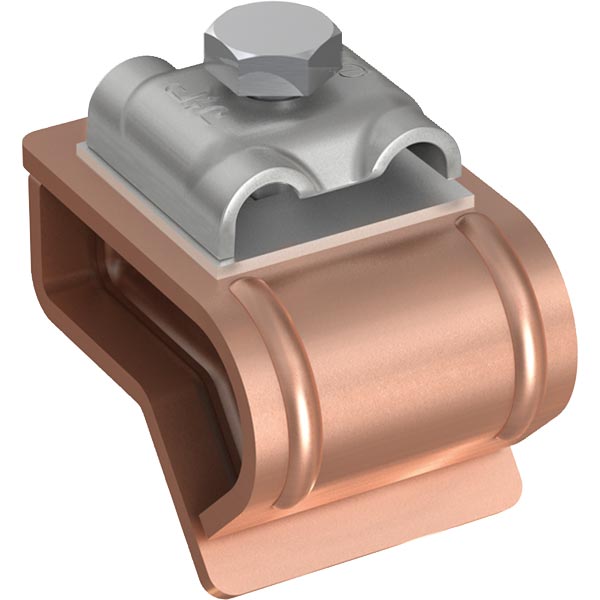

| The established clamping-system by J.Pröpster. It is a reasonably priced and practical solution for a proper connection between different materials. | |
| Benefits: | |
| • Simplified handling - no coping with self-made washers | |
| • Non-corrosive connections between wires made of different materials (e.g. steel, aluminium) | |
| • Corrosion-free connections between copper wires and: earth lead-in rods, test joints, skylights, metal constructions
For more detailed information, you can review the page in the link below. |
