Air-termination pole for insulated air-termination systems

to protect roof structures from direct lightning strikes under observance of the separation distance.

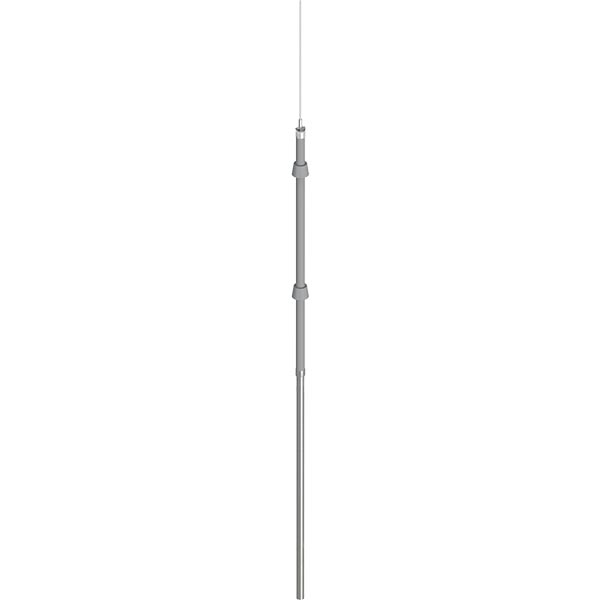

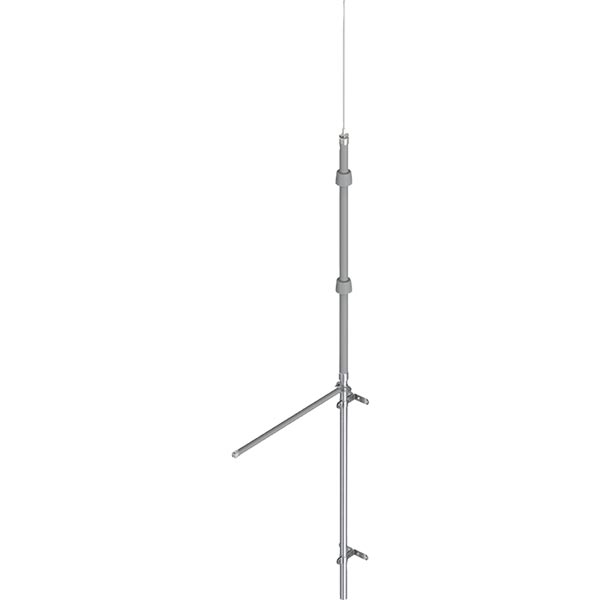

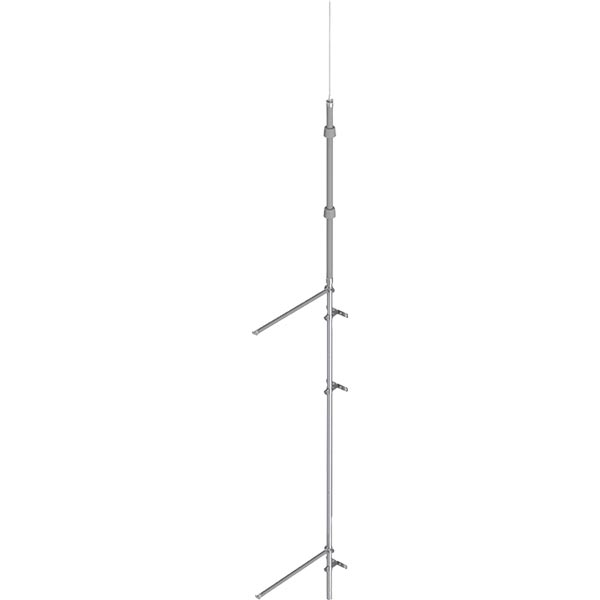

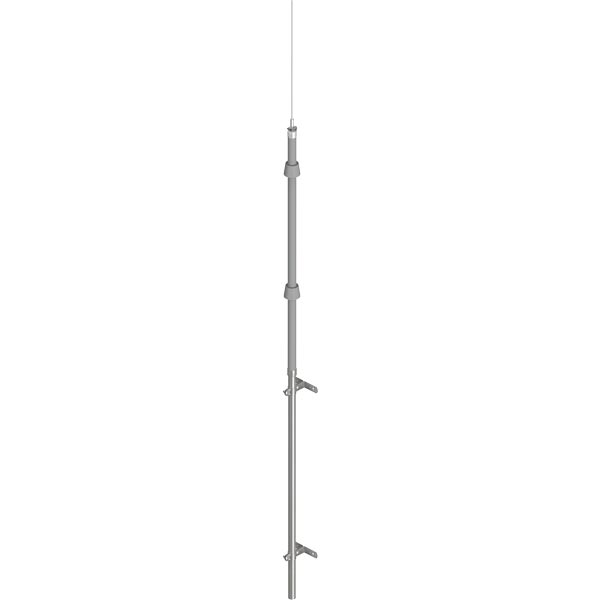

Air-termination pole consisting of stand pipe stainless Steel V2A, insulated support GRP 1.5 m and an air-termination tip 0,75m above air termination conductor.

Insulated support (upright separation distance): GRP, Ø 48 mm with 2 insulated shields (1500 mm length)
Air-termination tip: aluminium, Ø 10 mm with clamping component (750 mm length) For more detailed information, you can review the page in the link below.

Detail Information

Conductor height:

3,0 m

3,5 m

4,0 m

4,5 m

5,0 m, 2-parts

5,5 m, 2-parts

Stand-offs:

without

Mounting clamps:

without
